Removing Light-Emitting Diode For Alarm System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

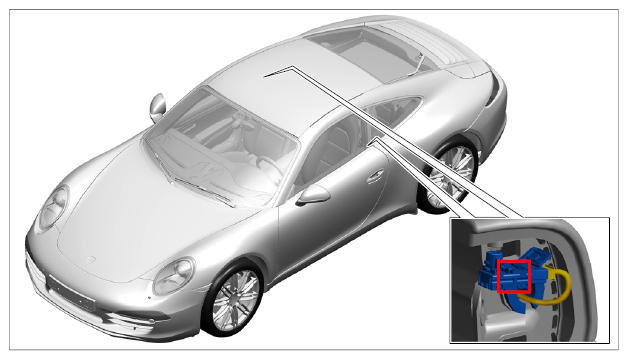

Fig 1: Identifying Light-Emitting Diode For Alarm System
G09999382Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove light-emitting diode for alarm system.
    • 1.1. Release light-emitting diode and bracket -A-  and unclip it -B-  .
    • 1.2. Disconnect plug connection -C-  .
    • 1.3. Pull cable out of the bracket -D-  .

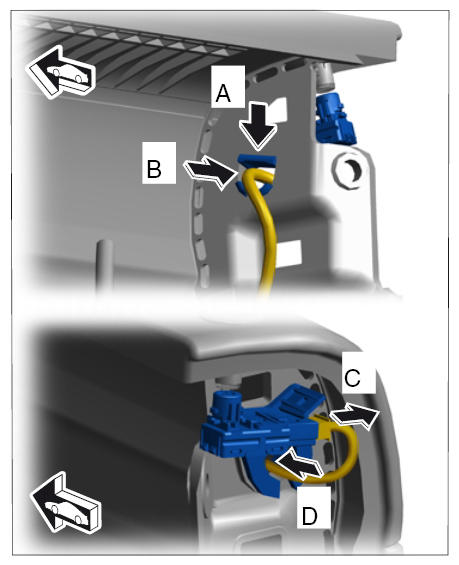

    Fig 2: Removing Alarm System Light-Emitting Diode
    G09999383Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect light-emitting diode for alarm system from the bracket.
    • 2.1. Release retaining lug -A-  .
    • 2.2. Remove light-emitting diode for alarm system from the bracket -B-  .

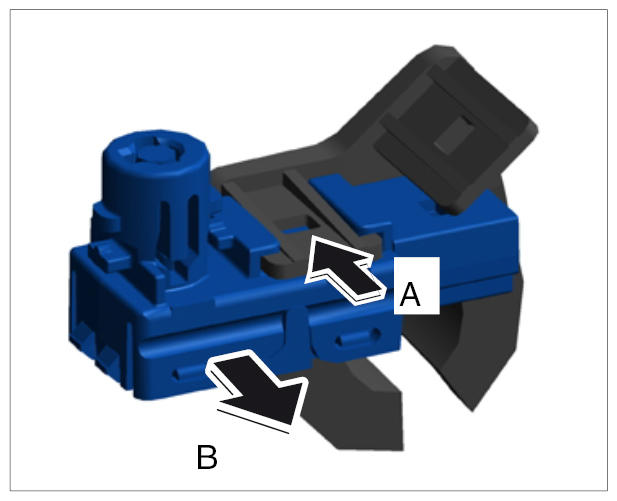

Fig 3: Disconnecting Alarm System Light-Emitting Diode From Bracket
G09999384Courtesy of PORSCHE CARS NORTH AMERICA, INC.
