Installing Light-Emitting Diode For Alarm System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clip light-emitting diode for alarm system into the bracket -arrow-  .

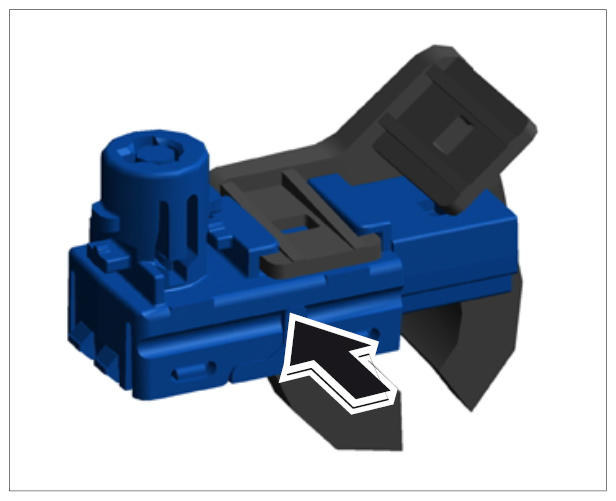

    Fig 1: Clipping In Light-Emitting Diode
    G09999385Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install light-emitting diode for alarm system.
    • 2.1. Pull cable through the bracket -A-  .
    • 2.2. Plug in plug connection -B-  and check that it is seated securely.
    • 2.3. Clip light-emitting diode and bracket into the door panel -C-  .

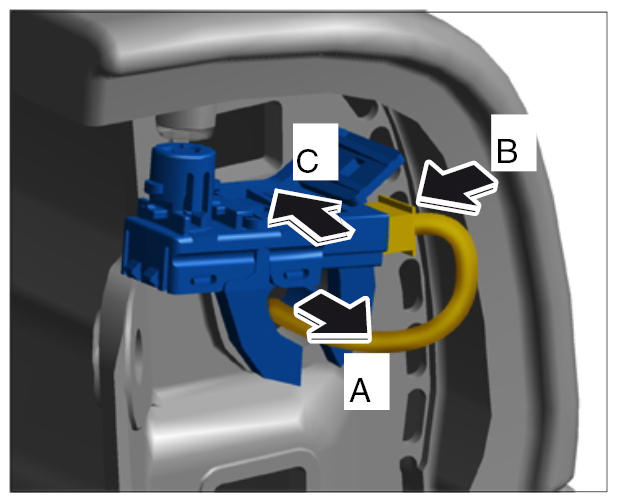

Fig 2: Installing Alarm System Light-Emitting Diode
G09999386Courtesy of PORSCHE CARS NORTH AMERICA, INC.
