Installing Alarm Siren

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect electric plug connection to the alarm siren -1-  (-a-  ) until the connector locks securely.
  2. Position the alarm siren -1-  and screw down with the fastening screw -2-  (-arrow-  ).

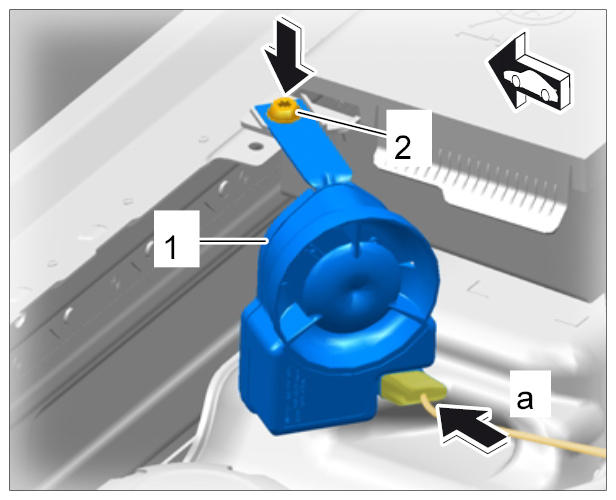

    3. Fig 1: Installing Alarm Siren
    G09999355Courtesy of PORSCHE CARS NORTH AMERICA, INC.
