Removing Luggage Compartment Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

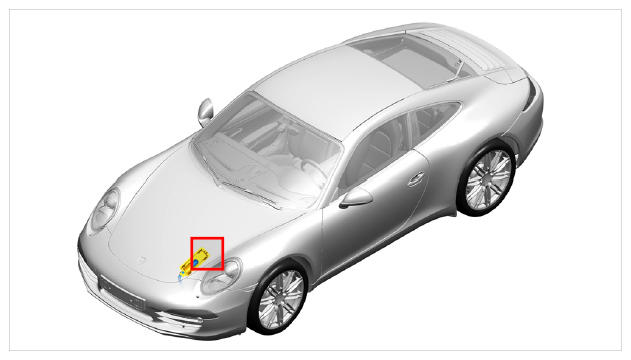

Fig 1: Identifying Luggage Compartment Lamp Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

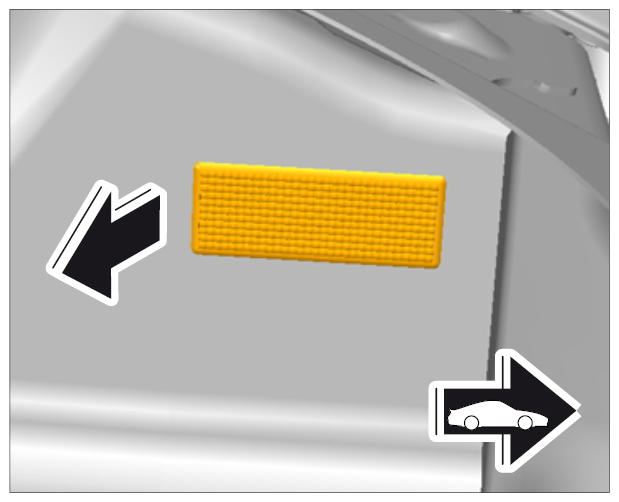

Unclip luggage compartment lamp -arrow- and pull out of trim panel.

Fig 2: Removing Luggage Compartment Lamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

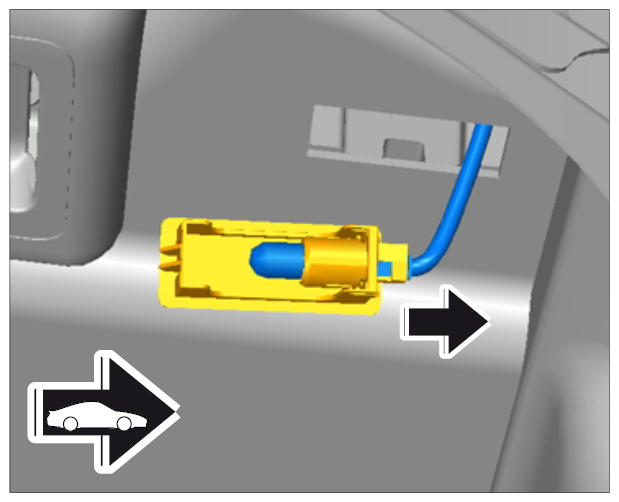

Pull off plug connection -arrow- .

Fig 3: Disconnecting Plug Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
