Installing Luggage Compartment Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

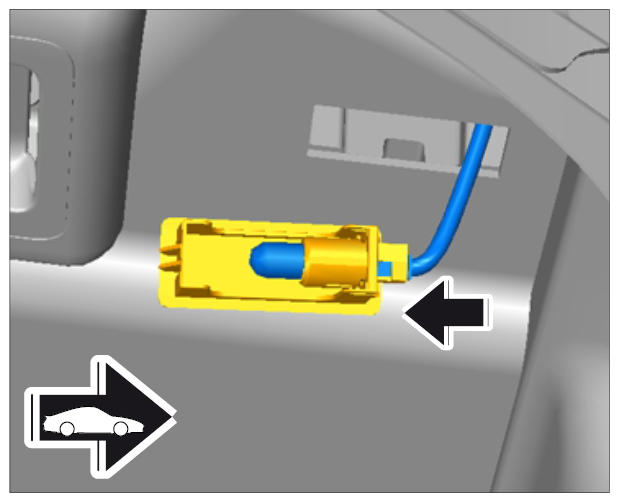

  1. Plug in plug connection -arrow-  and check that it is seated securely.
    Fig 1: Connecting Plug Connection
    G09999344Courtesy of PORSCHE CARS NORTH AMERICA, INC.

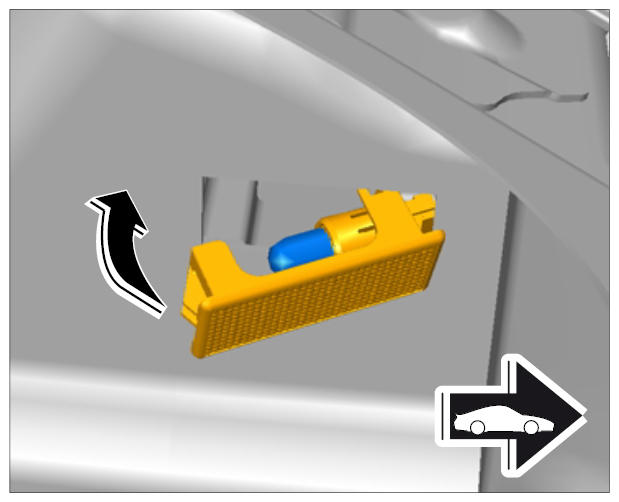

  2. Fit the luggage compartment lamp in the trim panel of the luggage compartment and clip it in -arrow-  .
Fig 2: Clipping In Luggage Compartment Light
G09999345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
