Removing Front Camera
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- Never touch the electric pins and plug contacts.
Information
Do not touch the front camera lens!
- Switch off ignition and pull remote control out of ignition lock.

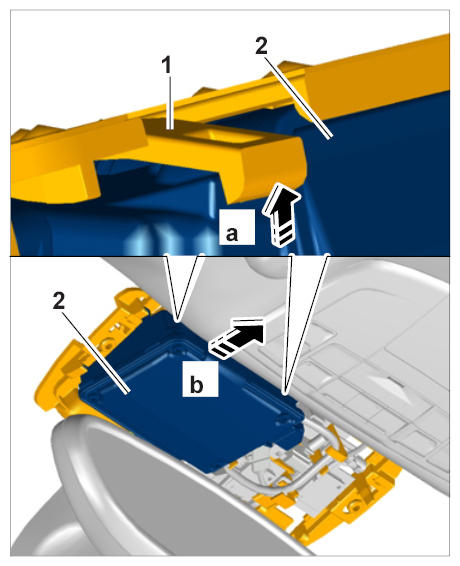

- Carefully disengage locks -1- at the left and right using two plastic wedges -a- and press front camera -2- to the rear and out of the holder -b- .

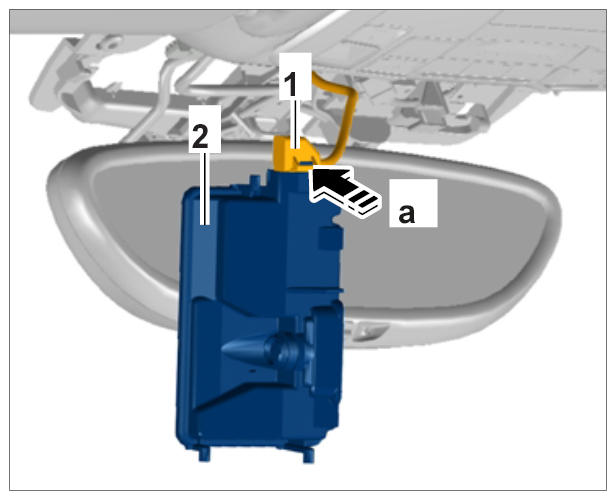

- Release electric plug connection -1- (-a- ) and pull it off the front camera -2- .
