Installing Front Camera
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- Never touch the electric pins and plug contacts.
Information
Do not touch the front camera lens!

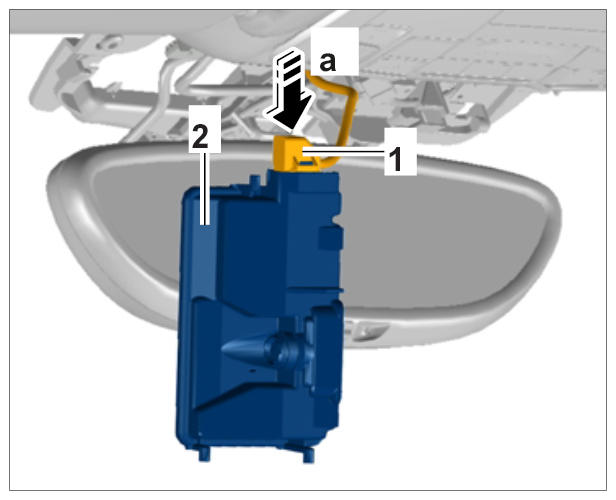

- Connect electric plug connection -1- on the front camera -2- (-a- ) until it engages securely.
- Install front camera.

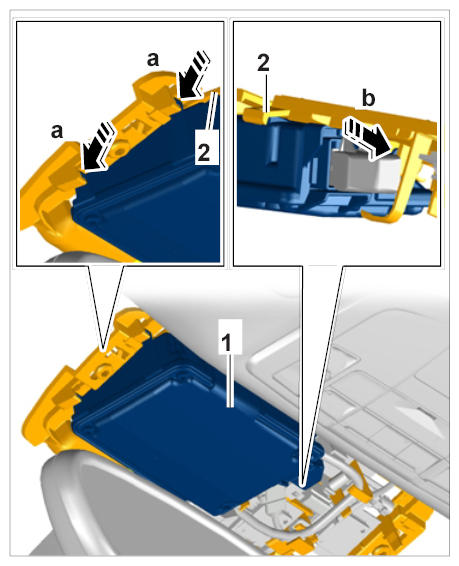

- 2.1. Position front camera -1- on the holder in such a way that the two retaining pins at the left -a- and the retaining pin at the right -b- make contact with the mounting points.
- 2.2. Press front camera forward into the mounting points until the locks -2- engage securely.
