Removing Switch Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

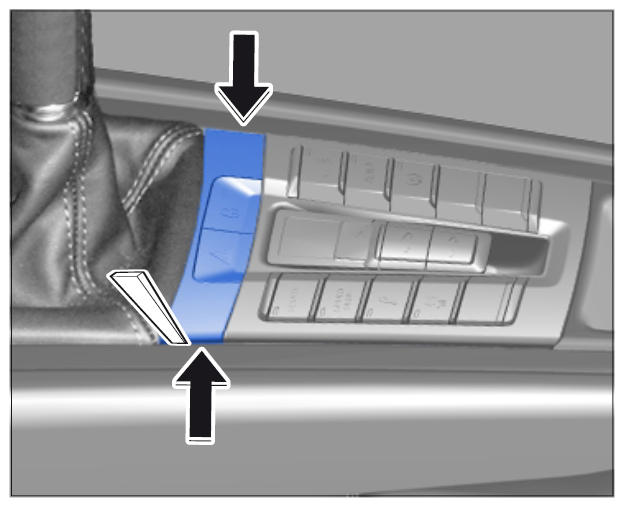

Insert plastic wedge into the gap -arrows- between the trim panel and keypad and carefully remove keypad.

Fig 1: Removing Keypad
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

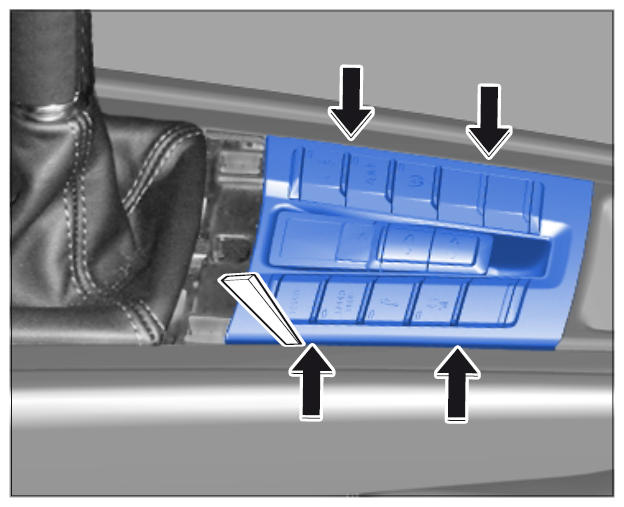

Insert plastic wedge into the gap -arrows- between the trim panel and switch console and carefully lift out switch console.

Fig 2: Removing Switch Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

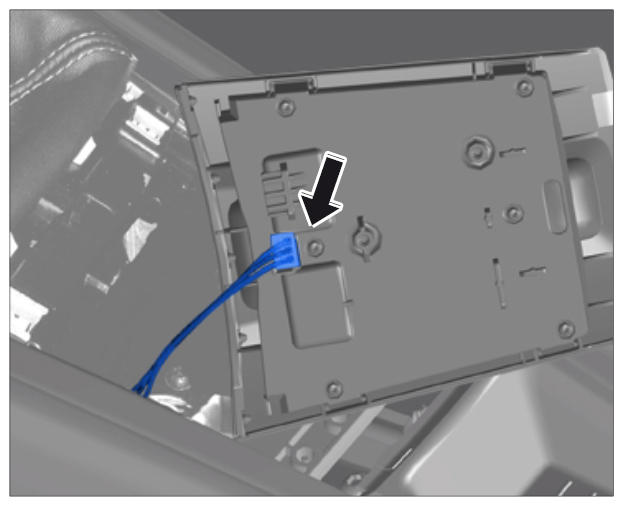

Unplug electric plug connection for switch console -arrow- .

Fig 3: Removing Switch Console Connector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
