Installing Switch Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

Information

The as-delivered state of the switch console is modular, if it needs to be replaced, the body must be fitted with the operating buttons in accordance with the vehicle equipment.

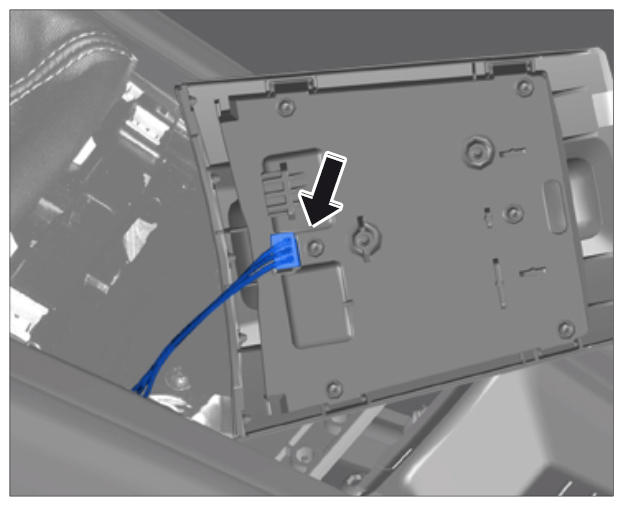

Insert the electric plug connection -arrow- until the connector engages securely.

Fig 1: Installing Switch Console Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

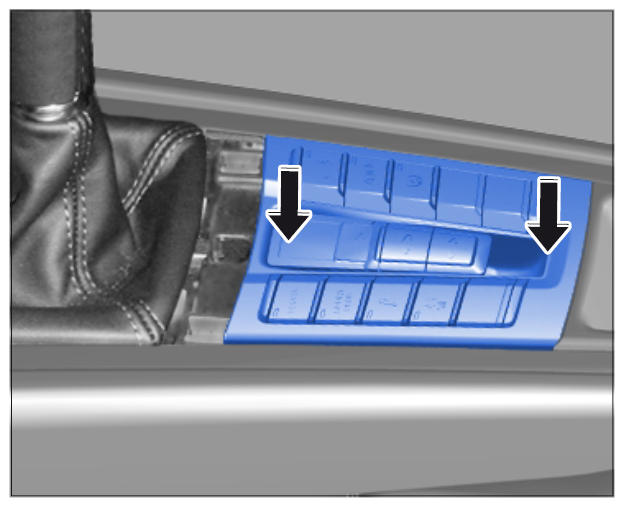

Press switch console above and below the middle keypad -arrows- into the center console until the switch console engages securely.

Fig 2: Inserting Switch Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

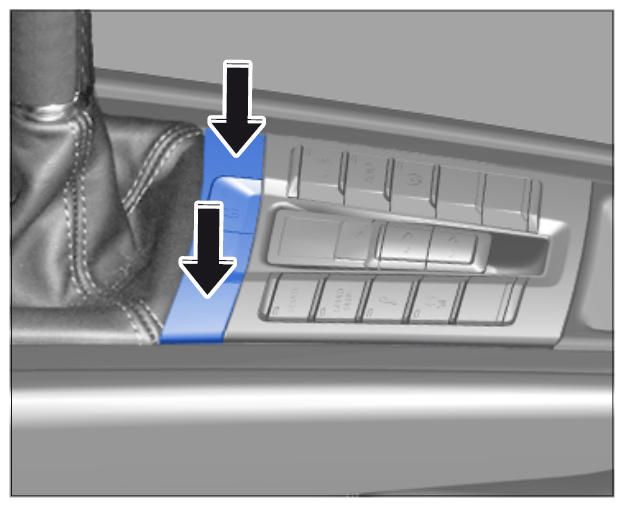

Press keypad above the switch console into the center console -arrows- until the keypad engages securely.

Fig 3: Inserting Keypad

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
