Removing Footwell Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

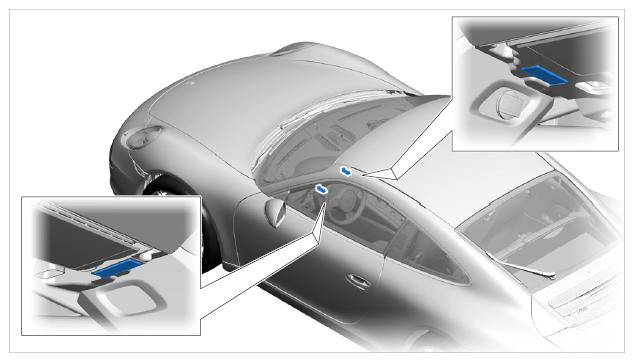

Fig 1: Identifying Footwell Lights Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

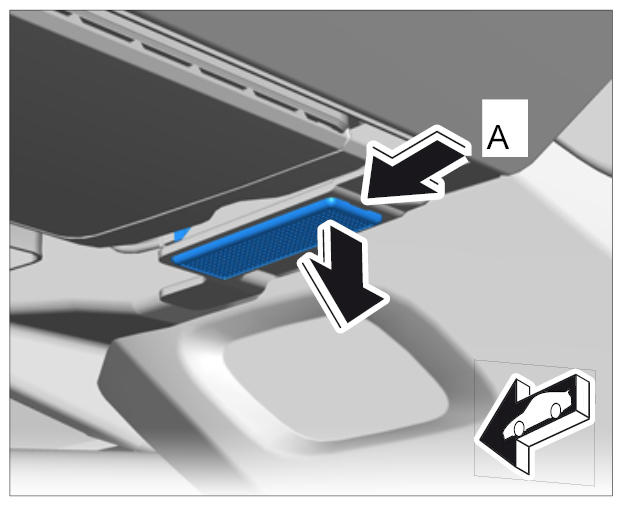

Press footwell light carefully out of the trim panel at the cut-out -A- using a screwdriver.

Fig 2: Removing Footwell Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

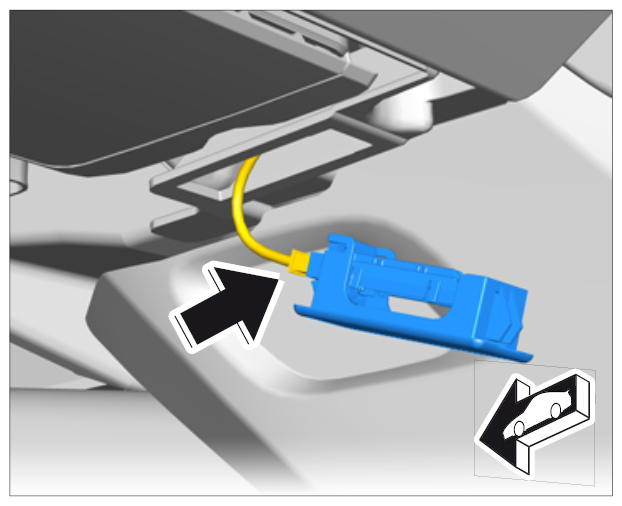

Unplug electric plug connection -arrow- for footwell light.

Fig 3: Removing Electric Plug Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
