Installing Footwell Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

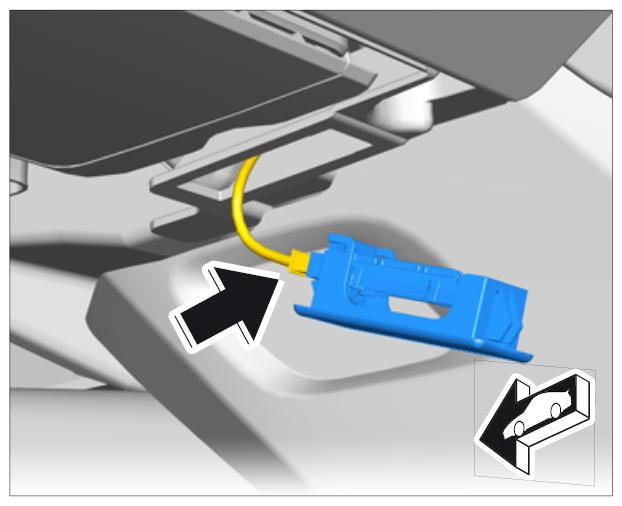

  1. Push in electric plug connection -arrow-  for footwell light until the connector engages securely.
    Fig 1: Installing Electric Plug Connection
    G09999324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

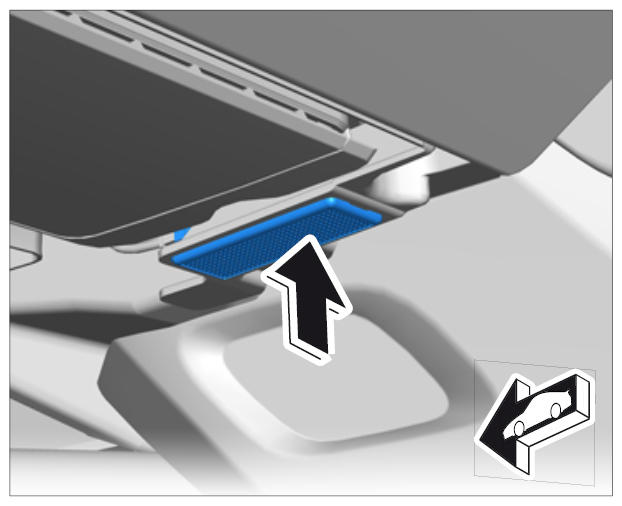

  2. Press footwell light into footwell trim panel -arrow-  .
Fig 2: Inserting Footwell Light
G09999325Courtesy of PORSCHE CARS NORTH AMERICA, INC.
