Removing Connecting Link

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

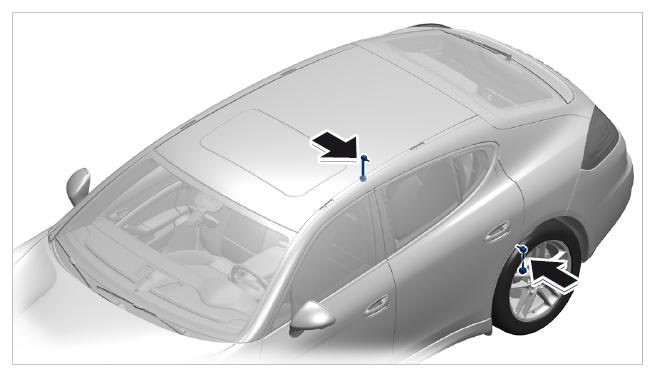

Fig 1: Locating Connecting Link
G09807721Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Raise the wheel carrier slightly using a suitable lift. Use a rubber base.

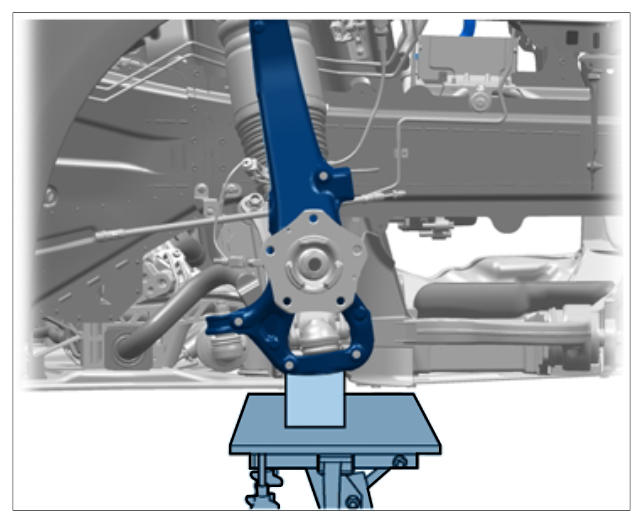

    Fig 2: Example Of Raising Wheel Carrier
    G09807722Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove fastening nut -1-  .

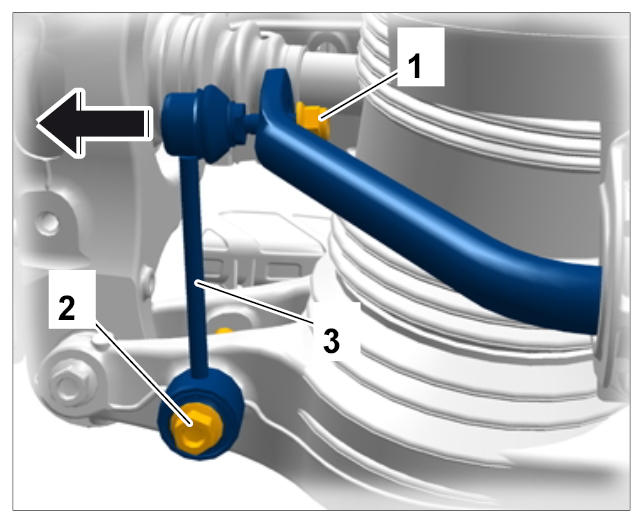

    Fig 3: Removing Fastening Screws And Connecting Link
    G09807723Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Counter ball pin with cone wrench Nr.200  .
  3. Remove fastening screw -2-  .
  4. Remove connecting link -3-  .
