Removing Rear Anti-Roll Bar

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

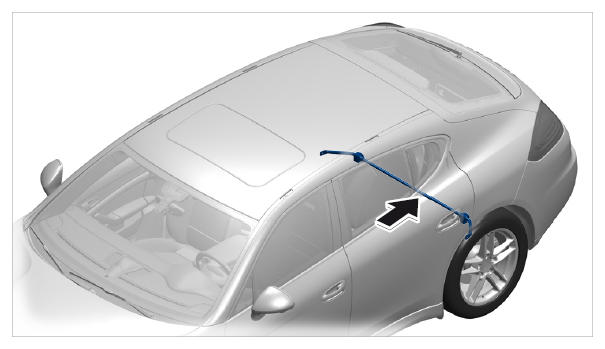

Fig 1: Locating Rear Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen suspension/stabilizer -1- .
1. 1.1. Loosen fastening nut -2- .
2. 1.2. Counter ball pin using cone wrench Nr.200 .
3. 1.3. Press suspension/stabilizer -1- outwards and remove it from the anti-roll bar.

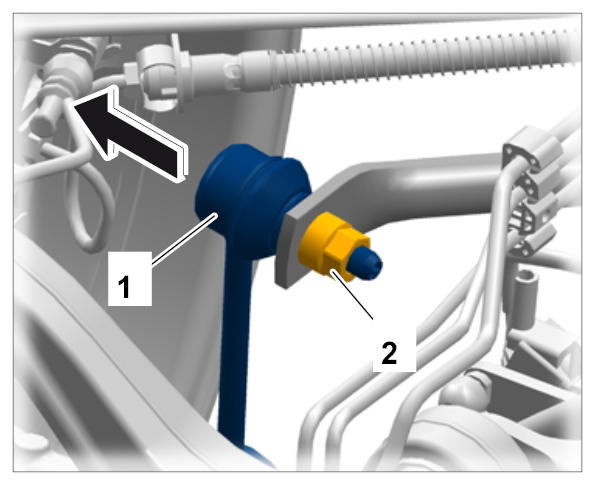

  Fig 2: Removing Suspension/Stabilizer From Anti Roll Bar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform the process in the same way on the opposite side.
Mark the installation position -arrow- of the anti-roll-bar mount halves with respect to the anti-roll bar with a touch-up stick.

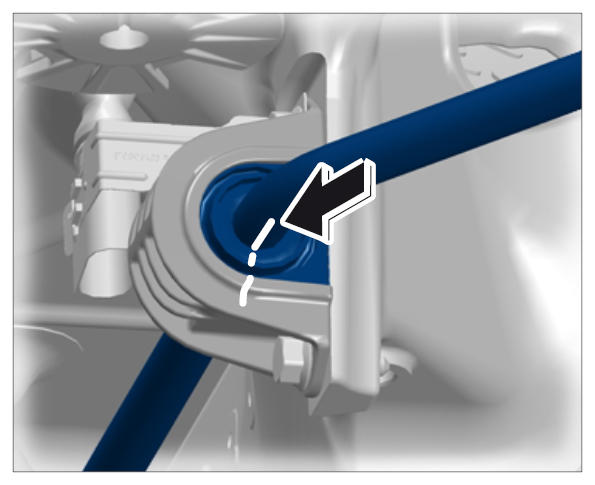

Fig 3: Example Of Marking Installation Position Of Anti Roll Bar Half Mounts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- on the anti-roll-bar mount.
Remove anti-roll-bar mount -2- .

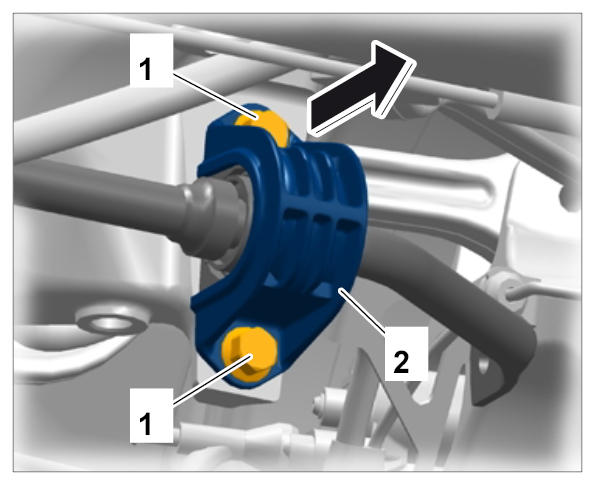

Fig 4: Removing Screws From Anti Roll Bar Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform the process in the same way on the opposite side.
Move anti-roll bar -1- to the right and remove it.

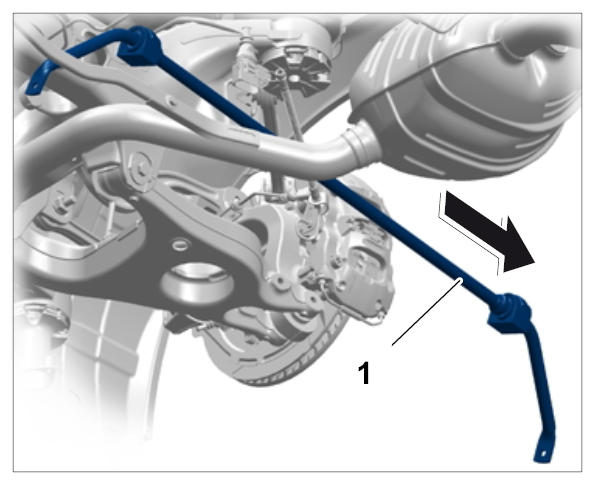

Fig 5: Removing Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
