Tools And Materials: Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Tool overview for wheel bearing

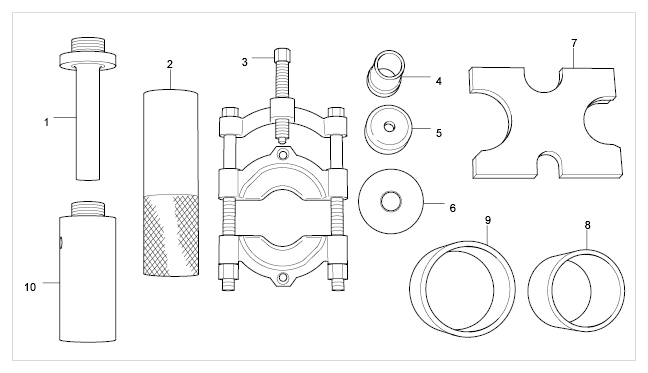

Fig 1: Identifying Tools For Rear-Axle Wheel Bearing
G09807657Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Small ram for workshop press (30 mm)  Screwing into the workshop press
  2. -2-  - Press-on sleeve 9694/3  Pressing on wheel hub, for positioning the wheel bearing housing with wheel bearing
  3. -3-  - Separating device Nr.111  Pressing inner wheel bearing race off the wheel hub
  4. -4-  - Pressure piece VW 454  Pressing in bond rubber mounting
  5. -5-  - T 10230/8 pipe Assembly fixture T10230  Pressing in bond rubber mounting, for positioning the wheel bearing housing
  6. -6-  - T 10205/10 pressure piece Attachments T10205  (attachments T10205) Pressing in wheel bearing and wheel hub
  7. -7-  - Pressure plate VW 402  Pressing out bond rubber mounting, for positioning the wheel bearing housing
  8. -8-  - T 10230/14 pipe Assembly fixture T10230  Pressing in wheel bearing, for positioning the wheel carrier
  9. -9-  - T 10205/5 pipe Attachments T10205  Pressing out wheel bearing (wheel bearing fits through pipe T10205/5)
  10. -10-  - Large ram for workshop press (70 mm)  Screwing into the workshop press
