Installing Wheel Bearing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The wheel bearing must not come into contact with magnetic objects (e.g. magnetic screwdriver, magnet).
Screws and nuts are Geomet-coated and must not be greased.
Grease the splines of the drive shaft with a light coating of aluminum paste Optimoly TA.
Drive shafts must not be left hanging from the joint stop! Tie them up.

Installing wheel bearing

Heat the wheel bearing housing -1- to about 80° C using a heating plate -2- .

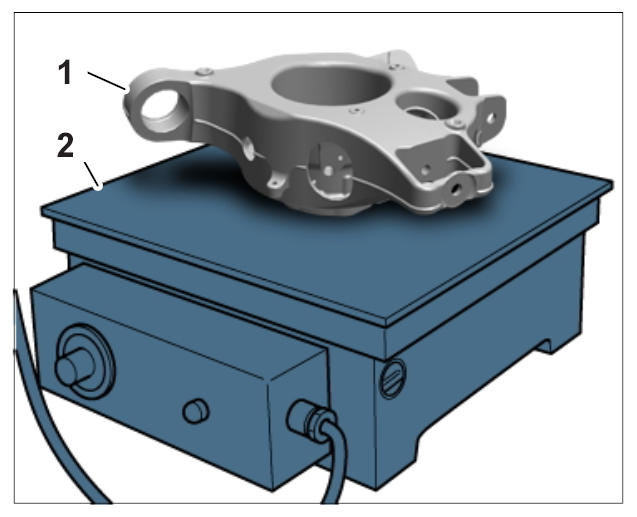

Fig 1: Heating Wheel Bearing Housing On Heating Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool for pressing in wheel bearing.

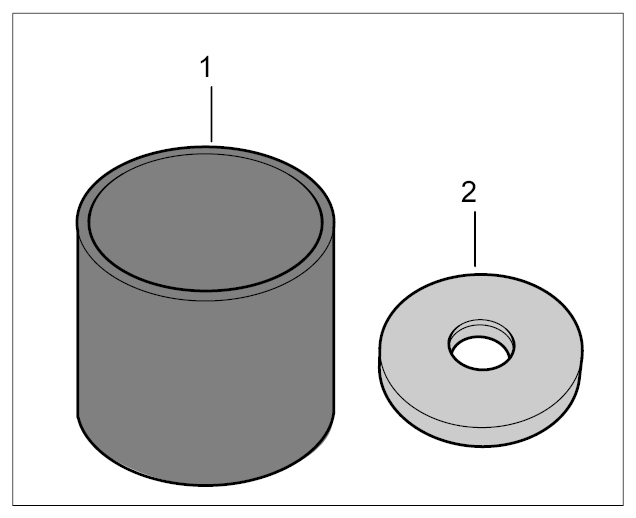

Fig 2: Identifying Tool For Pressing In Wheel Bearing (1 - Pipe T10230/14, 2 - Pressure Piece T10205/10)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw large ram into workshop press (see TOOLS AND MATERIALS , Tool overview: wheel bearing, item 10).
Position pipe T10230/14 -1- under the workshop press and fit the wheel bearing housing flat on top. Insert wheel bearing straight and at the correct position. Fit pressure piece T10205/10 -2- flush on the wheel bearing -side arrows- .
Carefully press wheel bearing in as far as it will go -direction arrow- (check pressure gauge! When the pressure increases rapidly, the wheel bearing is in installation position).

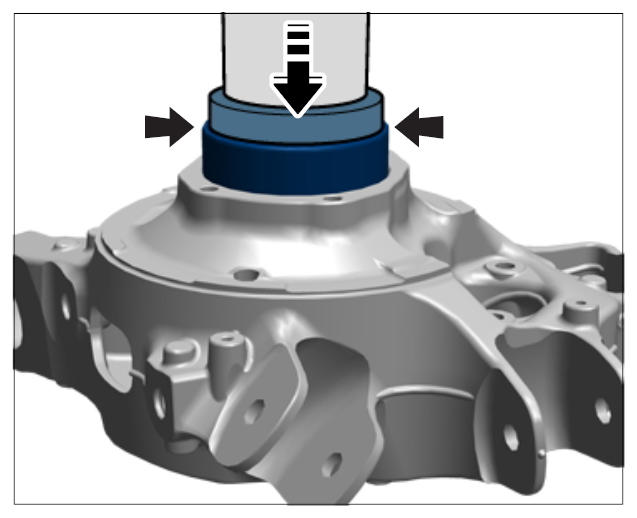

Fig 3: Pressing In Wheel Bearing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel bearing pressed into the wheel bearing housing as far as it will go -arrow- .

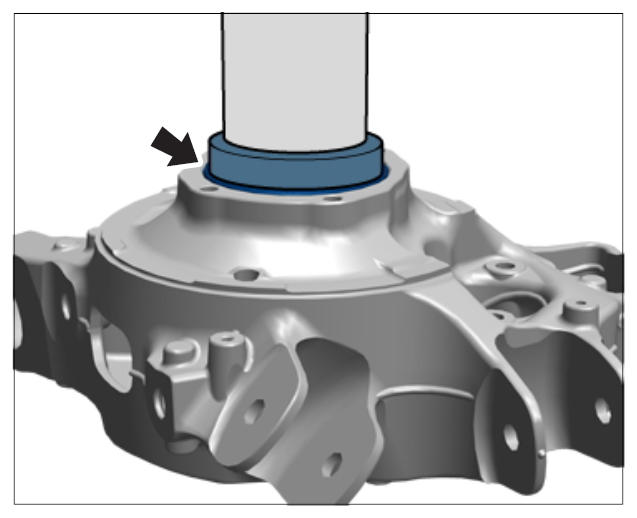

Fig 4: Pressing Wheel Bearing Into Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit mounting plate with new screws. Tightening torque 37 Nm (27 ftlb.)
