Component Overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

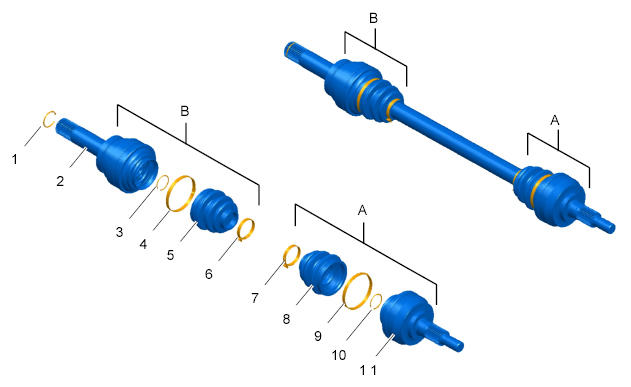

Fig 1: Single Drive Shaft Components
G09807594Courtesy of PORSCHE CARS NORTH AMERICA, INC.
No. Designation Qty. Removal Installation
B Inner joint
Not shown! Protective ring (transmission side only) 1 Left side only: Break (carefully) during removal in order to lever the drive shaft out of the transmission. Replace protective ring.
1 Circlip 1 Remove circlip. Do not confuse circlip no. 1 with circlip no. 3 on the inner joint. The two parts are not identical. Carefully slide the circlip onto the joint pin from above. Ensure that the circlip is seated correctly.
2 Joint 1 Remove the joint from the shaft using an aluminum mandrel and by hitting the ball hub (star-shaped inner ring) hard several times with a hammer. Fit the joint on the shaft. To do this, press circlip no. 3 together as required so that the joint slides over it easily when you tap it with a rubber hammer.
3 Circlip 1 Remove circlip carefully with a pliers. Do not confuse circlip no. 3 with circlip no. 1 on the inner joint. The two parts are not identical. Carefully slide the circlip onto the shaft from above. Ensure that the circlip is seated correctly.
4 Hose clamp, large 1 Remove hose clamp. For securing the bellows.
5 Bellows 1 Remove bellows from the shaft.
6 Hose clamp, small 1 Remove hose clamp. For securing the bellows.
A Outer joint
7 Hose clamp, small 1 Remove hose clamp. For securing the bellows.
8 Bellows 1 Remove bellows from the shaft.
9 Hose clamp, large 1 Remove hose clamp. For securing the bellows.
10 Circlip 1 Remove circlip carefully with a pliers. Do not confuse circlip no. 10 with circlip no. 1 on the inner joint. The two parts are not identical. Carefully slide the circlip onto the shaft from above. Ensure that the circlip is seated correctly.
11 Joint 1 Remove the joint from the shaft using an aluminum mandrel and by hitting the ball hub (star-shaped inner ring) hard several times with a hammer. Fit the joint on the shaft. Press circlip no. 10 together as required so that the joint slides over it easily when you tap it with a rubber hammer.
