Disassembling Drive Shaft: Disassembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

The joint on the transmission side and the joint pin on the wheel side of the rear axle can be replaced. The entire drive shaft must be replaced if the profile shaft is defective.

Inner joint (transmission side)

Information

Before removing the bellows, mark the position of the bellows on the drive shaft with a colored pen (see also >>ASSEMBLING DRIVE SHAFT , <<).

Remove the circlip (on transmission side) using circlip pliers Nr.68 .
Remove the bellows from the inner joint and slide it back. → Removing bellows

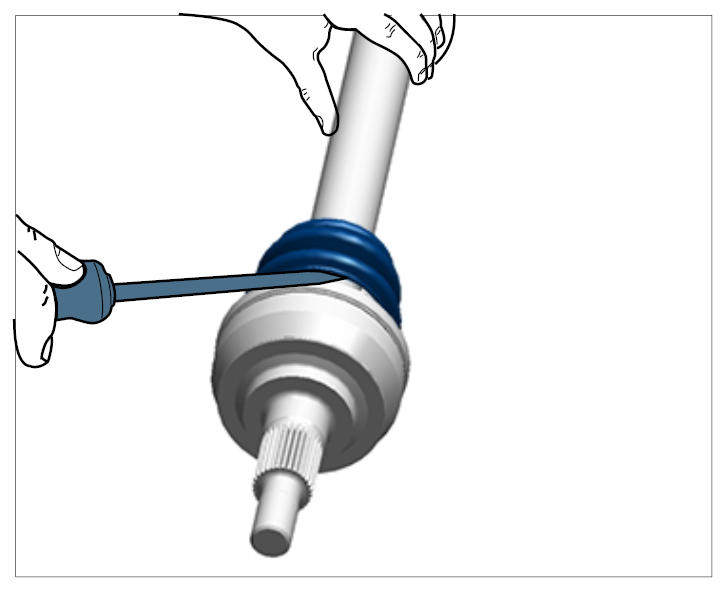

Fig 1: Removing Bellows From Inner Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clamp the drive shaft (use aluminum protective jaws). Fit an aluminum mandrel on the ball hub (star-shaped inner ring) -arrow- and remove the joint pin (inner joint) by hitting it several times with a hammer.

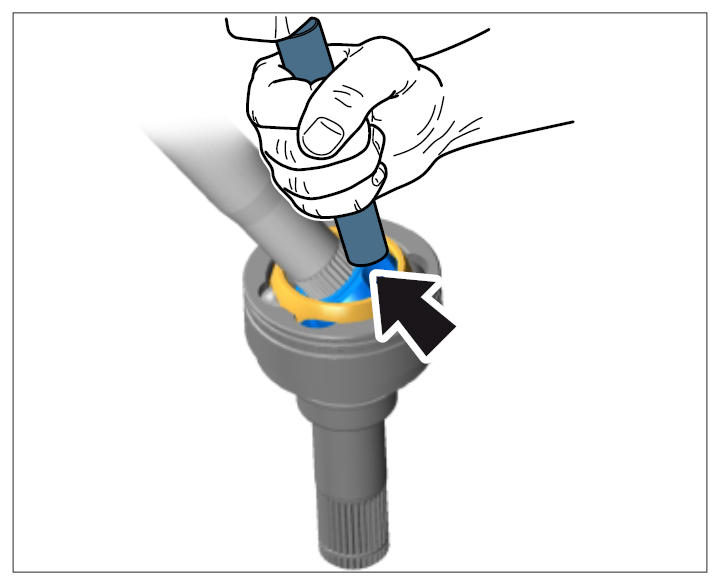

Fig 2: Removing Joint Pin (On Transmission Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the hose clamps and bellows and take them off the profile shaft.
Outer joint (on wheel side)
Clamp the drive shaft (use aluminum protective jaws). Fit an aluminum mandrel on the ball hub (star-shaped inner ring) -arrow- and remove the joint pin (outer joint) by hitting it several times with a hammer.

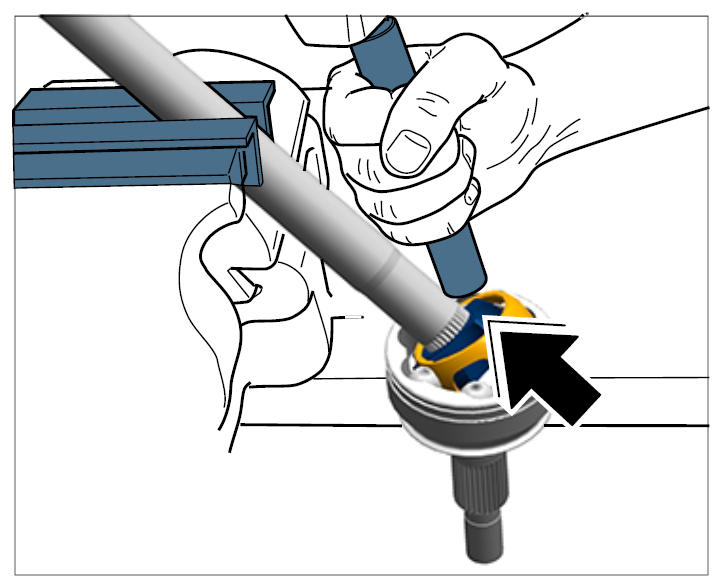

Fig 3: Removing Joint Pin (On Wheel Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
