Master Gear Unit Elevating Platform WE 1206

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Only the supports marked with double digits (e.g. P11, P22) are used for mounting the rear axle!

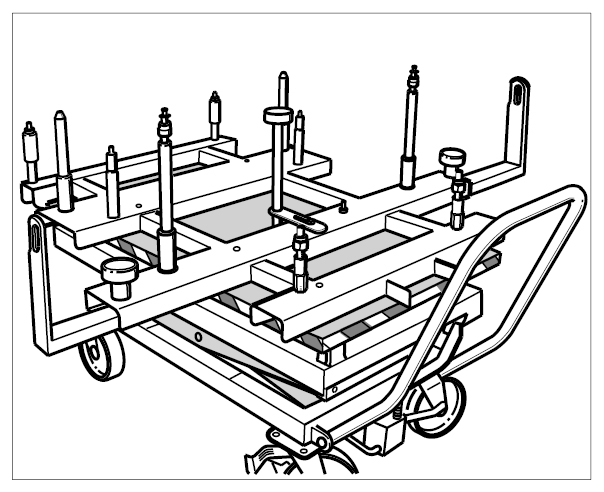

Fig 1: Identifying Lifting Platform
G09807533Courtesy of PORSCHE CARS NORTH AMERICA, INC.
