Preliminary Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. → 4X00IN LIFTING THE VEHICLE
  2. Remove rear wheels. → 440519 REMOVING AND INSTALLING WHEEL
  3. Bleed the air springs on vehicles with air suspension. → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
  4. Remove the steel springs on vehicles with steel suspension. → 427219 REMOVING AND INSTALLING REAR COIL SPRING
  5. Remove rear wheel housing liner at the left. → 536919 REMOVING AND INSTALLING REAR WHEEL HOUSING LINER
  6. Remove underbody panelling. → 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY → 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY
  7. Remove the exhaust system starting at the connection point after the catalytic converter. → 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
  8. Remove cardan shaft.
    1. 8.1. Mark the installation position of the cardan shaft -arrow-  .
    2. 8.2. Remove the cardan shaft → 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT

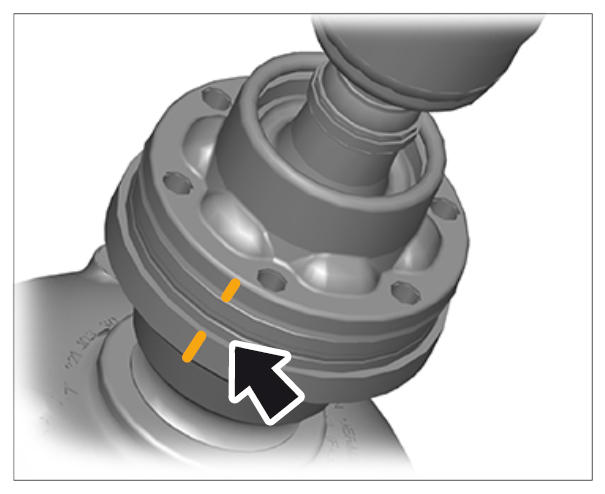

      Fig 1: Example Of Cardan Shaft Marking
      G09807532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
