Removing Transmission Control Unit (PDK)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

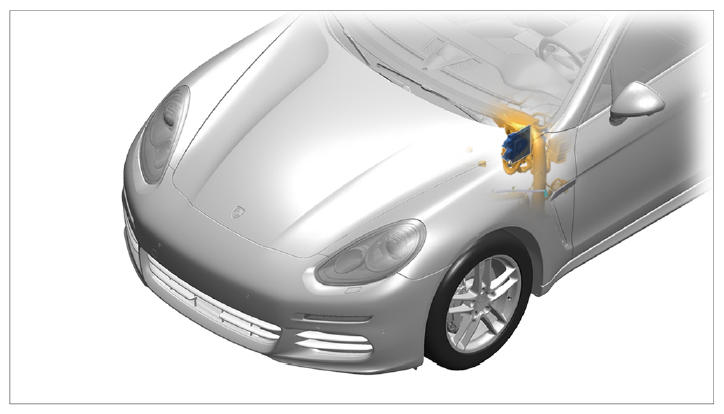

Fig 1: Transmission Control Unit (PDK) Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Release, open and disengage retaining bar -a- .

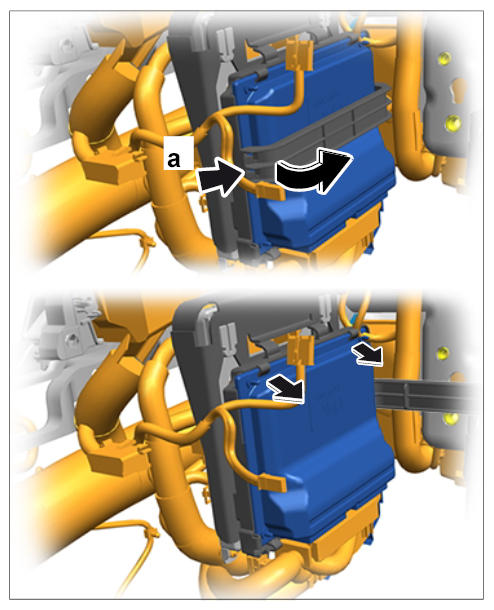

Fig 2: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press locking lugs on the PDK control unit to the side and unclip the PDK control unit out of the holder.
Release -a- , open -A- and pull off -B- connector.

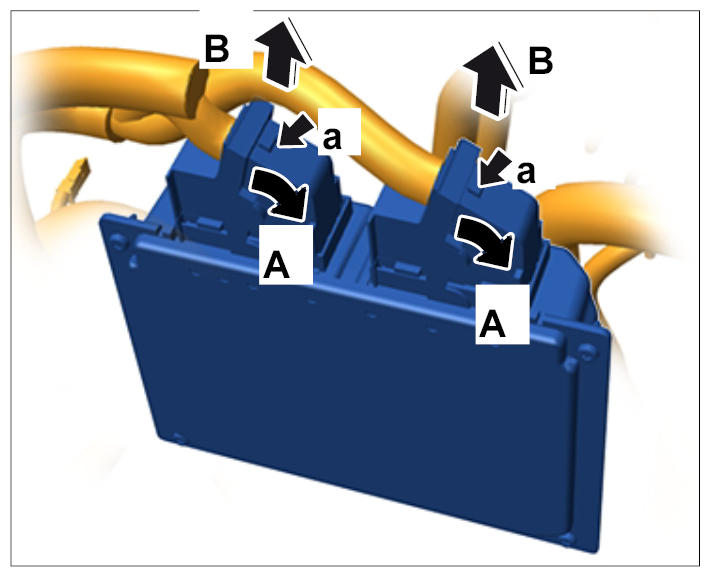

Fig 3: Releasing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
