Installing Transmission Control Unit (PDK)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Push electric connector onto the PDK control unit and lock connector.
Insert PDK control unit into the holder and secure using the retaining bar.

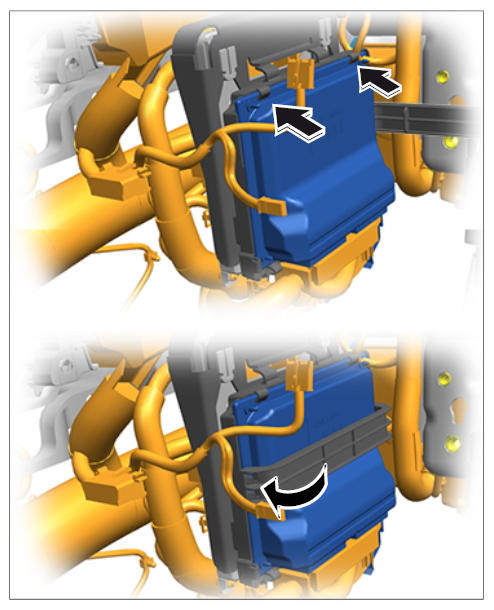

Fig 1: Installing PDK Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
