Removing Steering Column Casing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Adjust steering wheel to lower position.
Unclip upper part of casing.
1. 2.1. Turn steering wheel in such a way that the openings on the front are accessible.

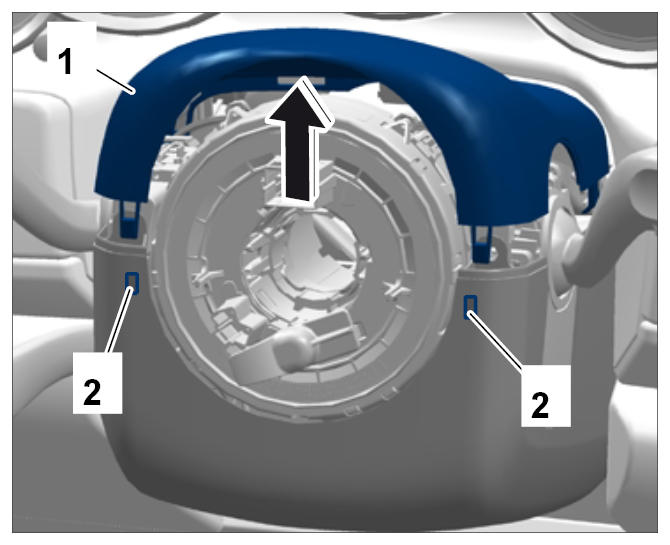

2. 2.2. Unclip upper part of casing -1- through the openings on the front -2- using a suitable screwdriver.

  Fig 1: Removing Upper Part Of Steering Column Casing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

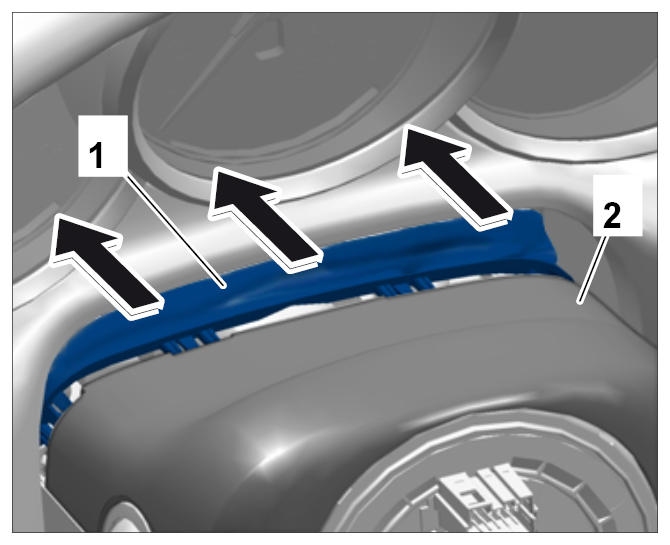

Unhook dust boot -1- on upper part of casing -2- and push it back.

Fig 2: Removing Dust Boot
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove upper part of casing.
Release lower part of casing.

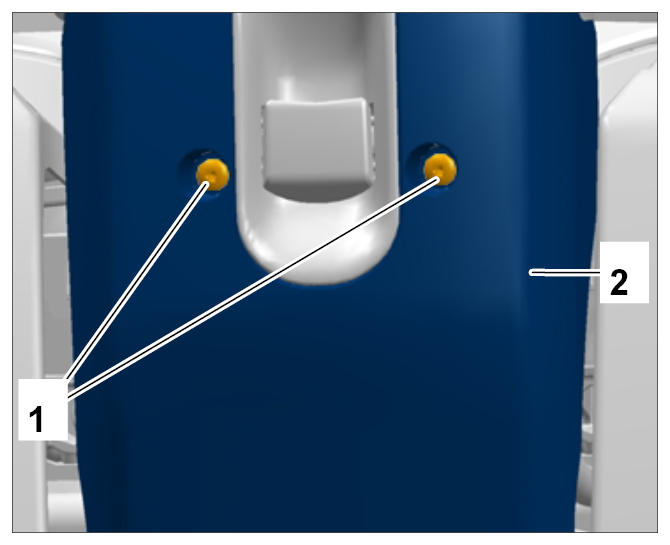

1. 5.1. Unscrew fastening screws -1- in lower part of casing -2- . (For electric steering-wheel adjustment only)

  Fig 3: Identifying Screws On Lower Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

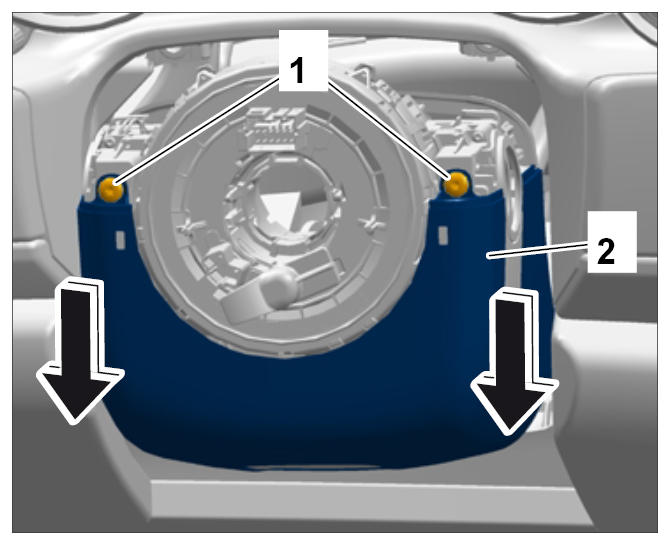

2. 5.2. Turn the steering wheel in such a way that the fastening screws -1- on the front are accessible.
3. 5.3. Unscrew fastening screws -1- on lower part of casing -2- .
Fold lower part of casing -2- down out of the way -arrows- .

Fig 4: Folding Lower Part (Front) Of Casing Down
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

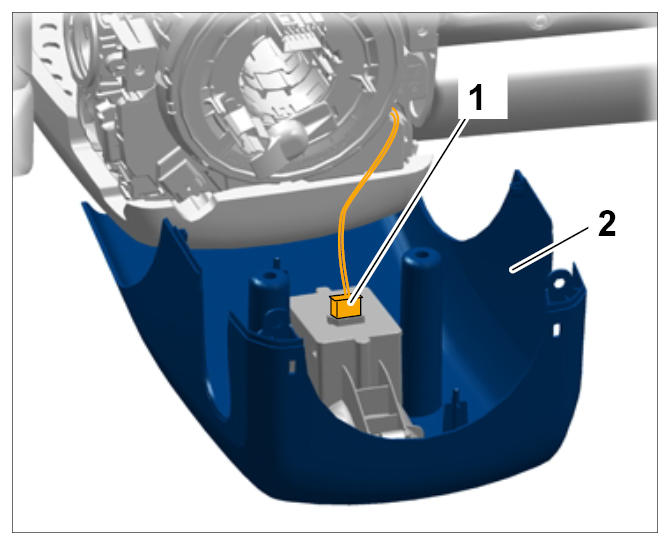

Release and disconnect plug connection -1- . (For electric steering-wheel adjustment only) .
Remove lower part of casing -2- .

Fig 5: Identifying Plug Connection And Lower Part Of Casing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
