Removing Steering Wheel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Turn wheels to straight-ahead position.
Information
- Always release and disconnect the plug connections for steering wheel heater cables and airbag cables before removing the steering wheel.
If the vehicle has a heated steering wheel: Release plug connection for heated steering wheel -1- and pull it off.
Release and pull off plug connection for airbag wire harness -2- .

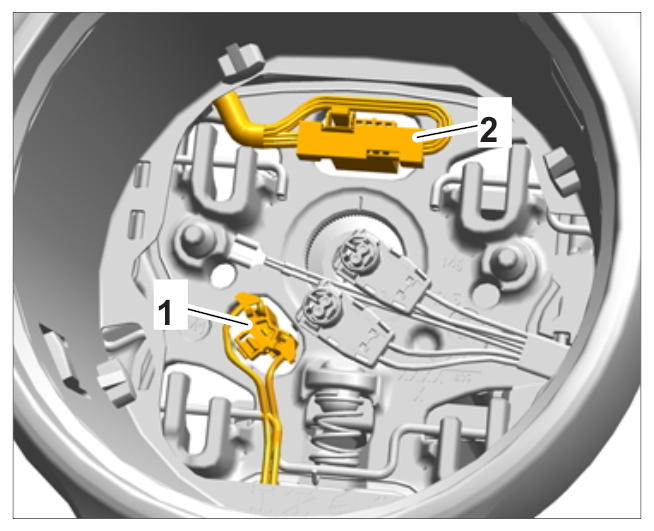

Fig 1: Identifying Plug Connections For Heated Steering Wheel And Airbag Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Immediately after unscrewing the fastening screw and before removing the steering wheel, it is essential to mark the position of the steering wheel and steering column -2- .

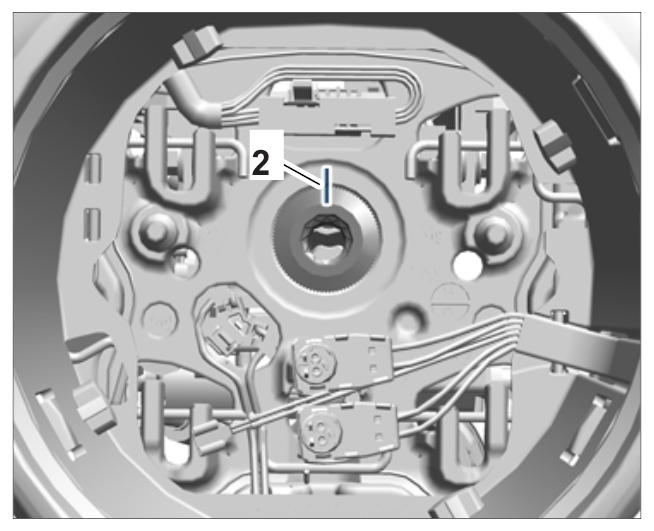

Fig 2: Identifying Mark For Position Of Steering Wheel And Column
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

When reinstalling, this ensures that the steering wheel as well as the airbag spring are fitted back in the same position on the steering column.
Unscrew and remove fastening screw -1- using multiple-tooth socket-wrench insert Nr.32 ().

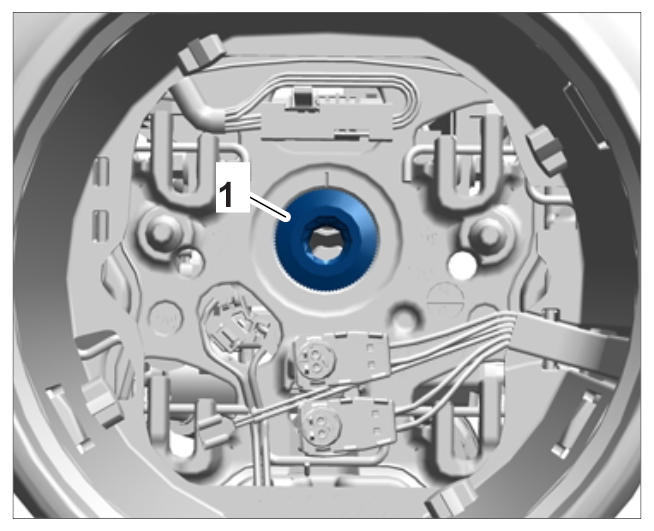

Fig 3: Identifying Multiple-Tooth Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark position of steering wheel.
Remove steering wheel.
