Installing Steering Wheel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Turn wheels to straight-ahead position and observe the markings you applied earlier!
Airbag unit must lock with an audible click! Check by pulling on the airbag unit!
Always replace the multiple-tooth screw!

Installation is performed in reverse order to removal.
Steering wheel to steering column: Tightening torque + torque angle 30 Nm (22 ftlb.) +90°
When positioning the steering wheel, make sure that the marking -2- between the steering wheel and steering column is aligned.

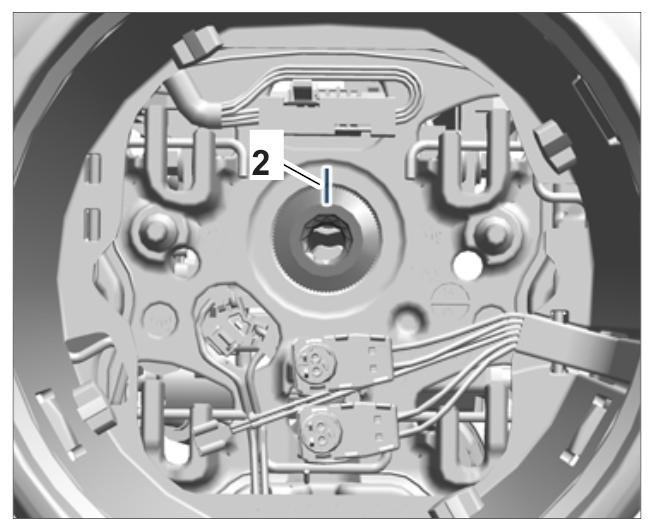

Fig 1: Identifying Mark For Position Of Steering Wheel And Column
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the airbag unit before installation
- Is the compression spring -1- positioned correctly (compression spring seating in spring guide!)?
- When you slide the securing clip -2- up evenly (against the spring force) and then let it go, the securing clip must be pressed down again evenly.

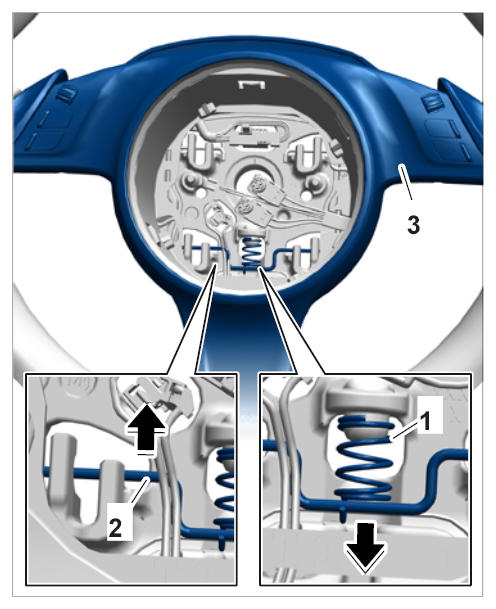

  Fig 2: Pressing Compression Spring And Securing Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
