Removing Auxiliary Headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect connector on auxiliary headlight -a-  .

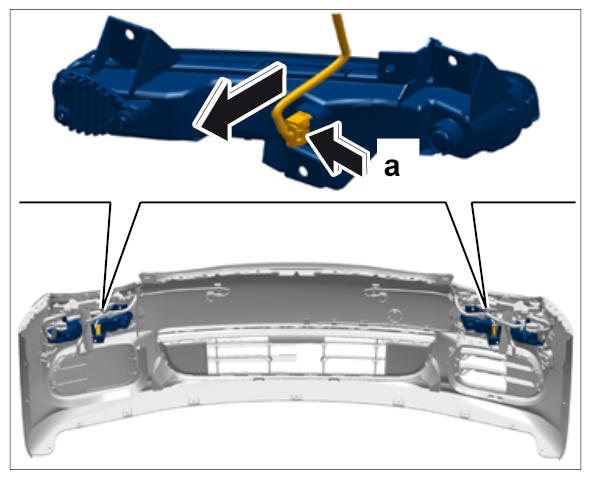

    Fig 1: Disconnecting Auxiliary Headlight Connector
    G09814872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew the three fastening screws -1-  and remove the auxiliary headlight from the front apron by moving it to the rear.

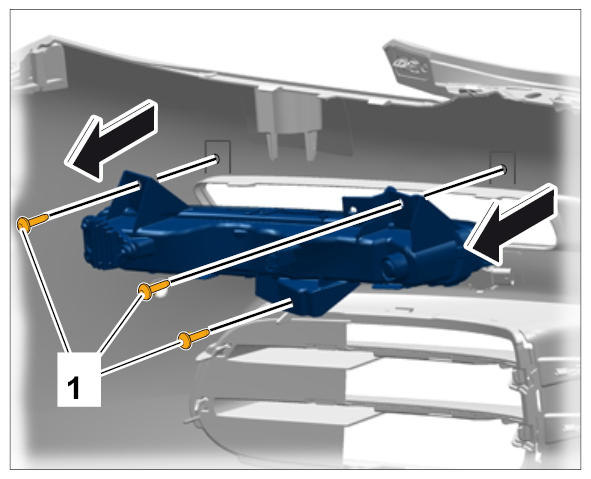

    Fig 2: Removing Auxiliary Headlight Fastening Screws
    G09814873Courtesy of PORSCHE CARS NORTH AMERICA, INC.
