Installing Auxiliary Headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit auxiliary headlight into the front apron from behind and screw in the three fastening screws -1-  . → Tightening torque: 2.8 Nm (2.0 ftlb.)

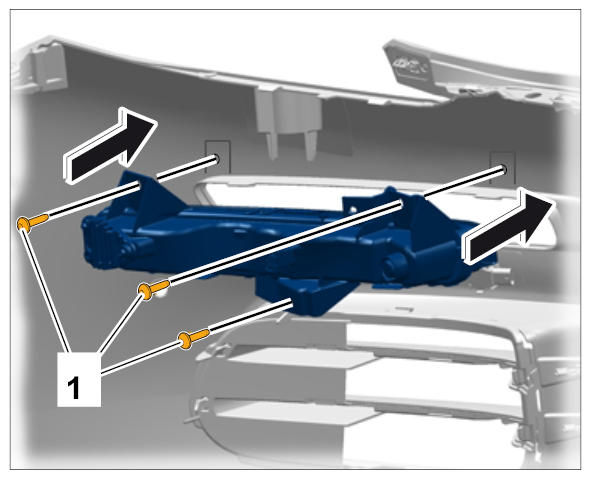

    Fig 1: Installing Auxiliary Headlight Fastening Screws
    G09814874Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Plug in connector until it engages securely.

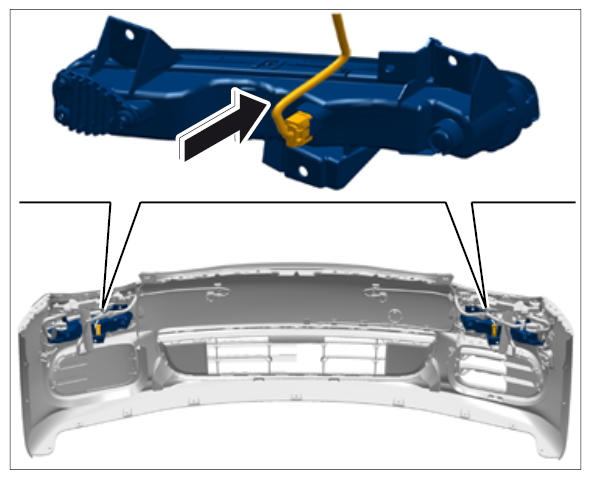

    Fig 2: Inserting Auxiliary Headlight Connector
    G09814875Courtesy of PORSCHE CARS NORTH AMERICA, INC.
