Removing Additional Brake Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening nuts -2-  for the additional brake light and remove additional brake light -1-  .
    Fig 1: Removing Additional Brake Light
    G09814868Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unplug electric connector -2-  on additional brake light -1-  .

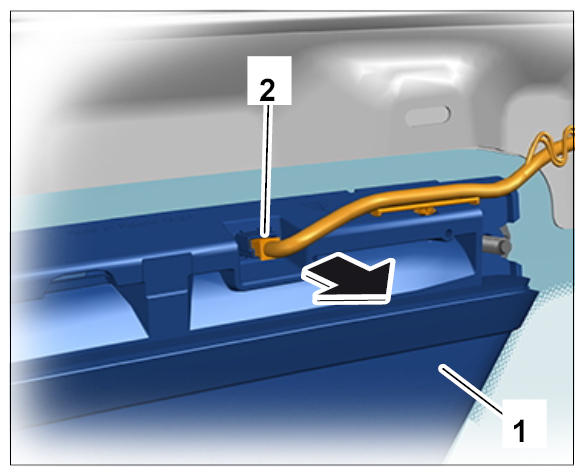

    Fig 2: Disconnecting Additional Brake Light Plug Connection
    G09814869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
