Installing Additional Brake Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Plug in electric connector -2- for additional brake light -1- . Check that it is seated securely.

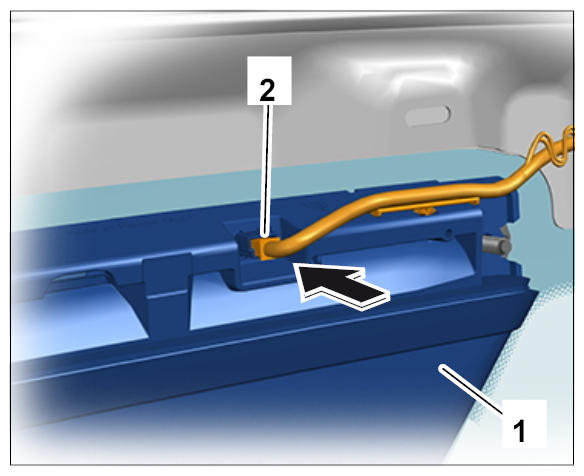

Fig 1: Connecting Additional Brake Light Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place additional brake light -1- in installation position and screw on fastening nuts -2- . → Tightening torque: 3 Nm (2 ftlb.)

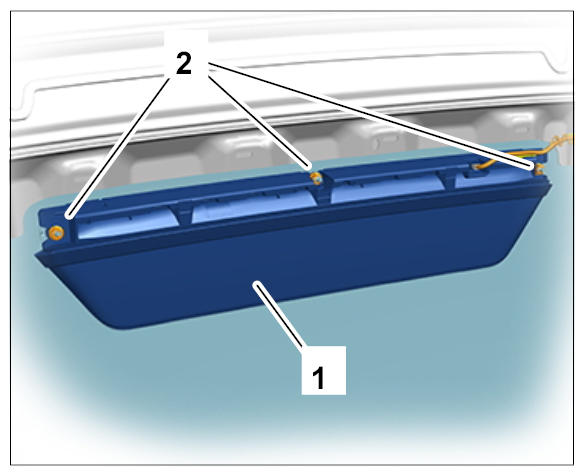

Fig 2: Installing Additional Brake Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
