Installing Gas-Discharge Headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of bulbs

Risk of damage to bulbs and the bulb housing

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

Information

The work steps are described for the left rear door of the vehicle and must be performed in the same way on the other doors. Any different work steps are marked/highlighted.

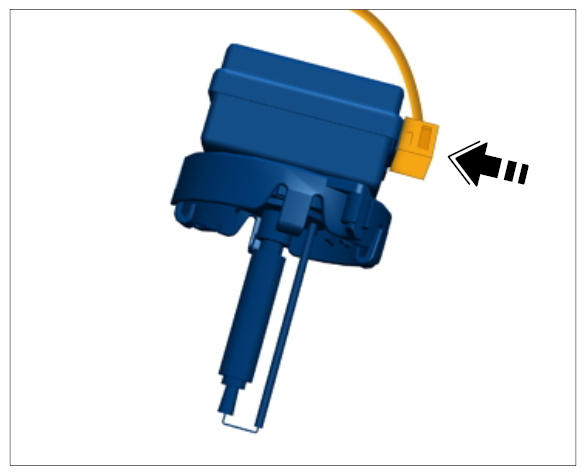

Plug in electric plug connection on the gas-discharge headlight. Check that it is seated securely.

Fig 1: Connecting Gas-Discharge Headlight Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

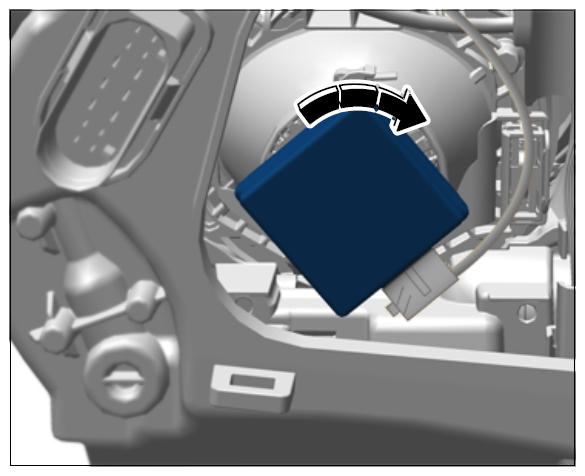

Carefully fit the gas-discharge headlight into the bracket and lock it by turning once in direction of arrow.

Fig 2: Turning To Fit Gas-Discharge Headlight Into Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

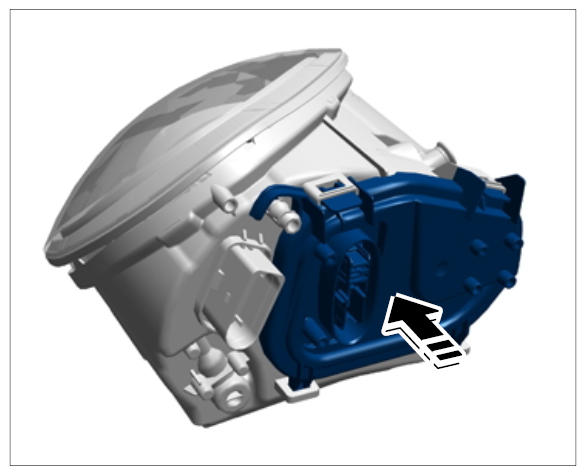

Insert the cover into the tabs provided and close it until it engages securely.

Fig 3: Closing Gas-Discharge Control Unit Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
