Installing Gas-Discharge Control Unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The steps are described for the left headlight and must be performed in the same way on the other side of the vehicle. Any different steps are marked/highlighted.
- Fit the control unit. Make sure it is seated securely.

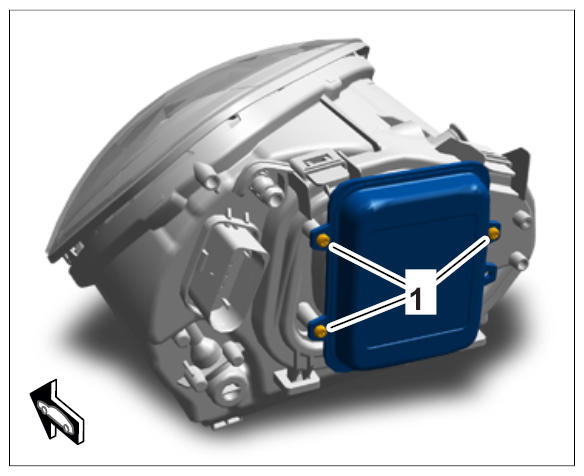

- Screw in the three fastening screws -1- . → Tightening torque: 1.5 Nm (1 ftlb.)
