Removing Steering-Column Switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release electric plug connection -1-  (-a-  ) and pull it off -A-  .

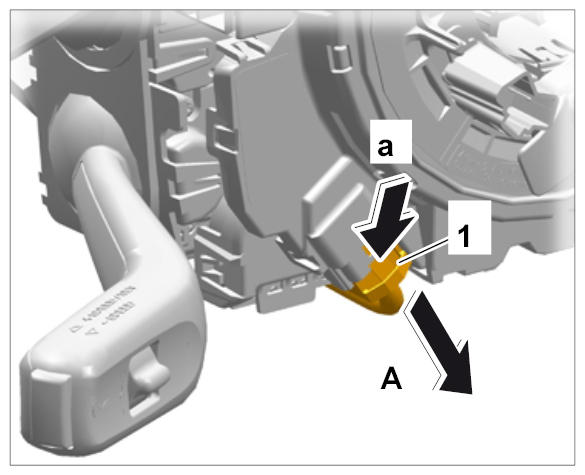

    Fig 1: Disconnecting Steering-Column Switch Electric Plug Connection
    G09814836Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew and remove clamping screw -1-  .

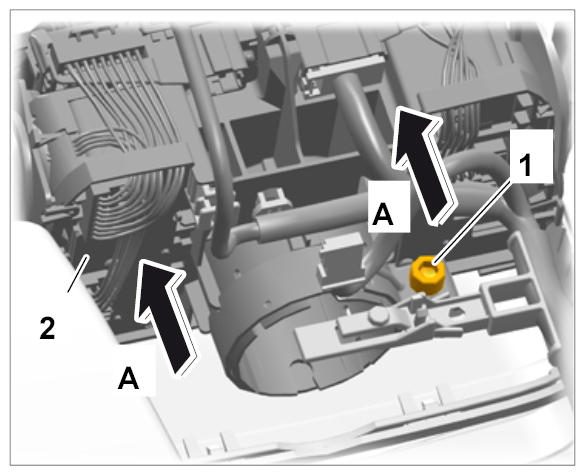

    Fig 2: Removing Clamping Screw
    G09814837Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull steering-column switch -2-  with control unit for steering wheel electronics off the steering column -A-  .
  4. Unclip clip -1-  using a screwdriver -A-  .
  5. Unclip clip -2-  using a screwdriver -B-  .
  6. Release electric plug connection -3-  and pull it off -C-  .

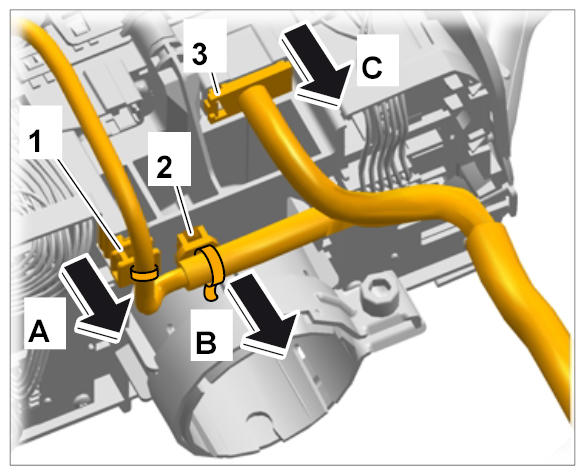

    7. Fig 3: Removing Steering-Column Switch Clips
    G09814838Courtesy of PORSCHE CARS NORTH AMERICA, INC.
