Installing Steering-Column Switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

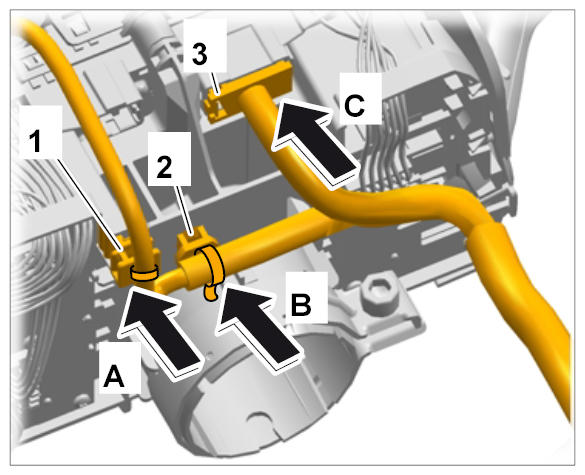

Fasten clip -1- (-A- ).

Fig 1: Installing Steering-Column Switch Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten clip -2- (-B- ).
Insert electric plug connection -3- until it engages securely -C- .

Fig 2: Installing Steering-Column Switch Clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

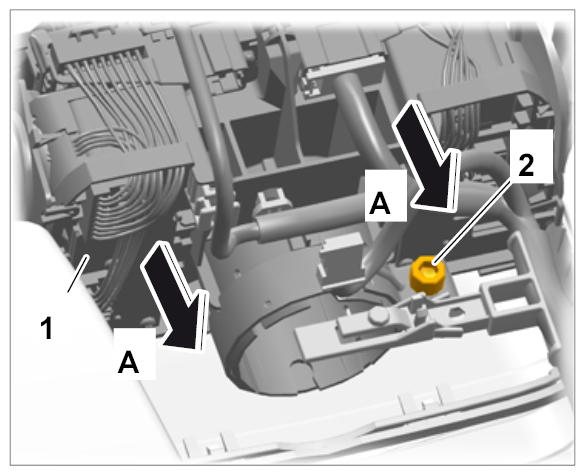

Push steering-column switch -1- with control unit for steering wheel electronics onto the steering column -A- .
Screw in clamping screw -2- .

Fig 3: Tightening Clamping Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

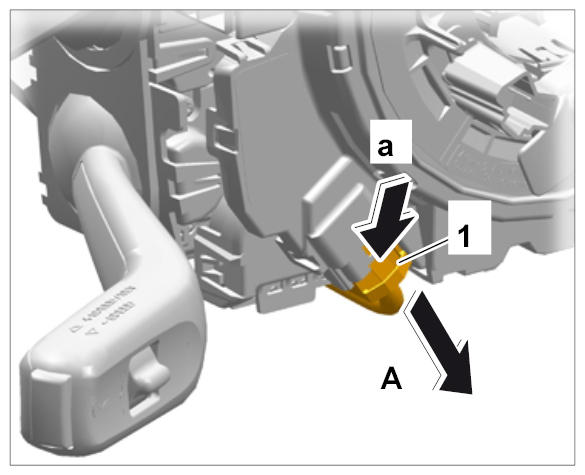

Insert electric plug connection -1- (-A- ).

Fig 4: Connecting Steering-Column Switch Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
