Removing Control Unit For Front-End Electronics

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

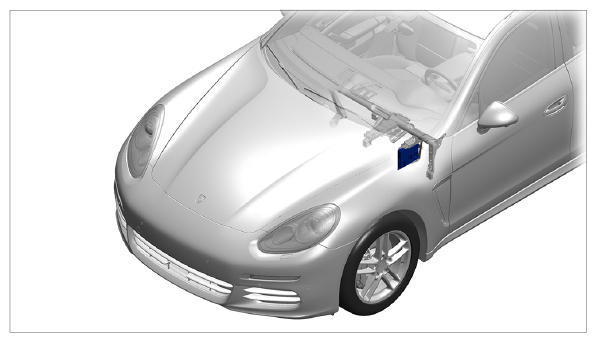

Fig 1: Identifying Control Unit For Front-End Electronics

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

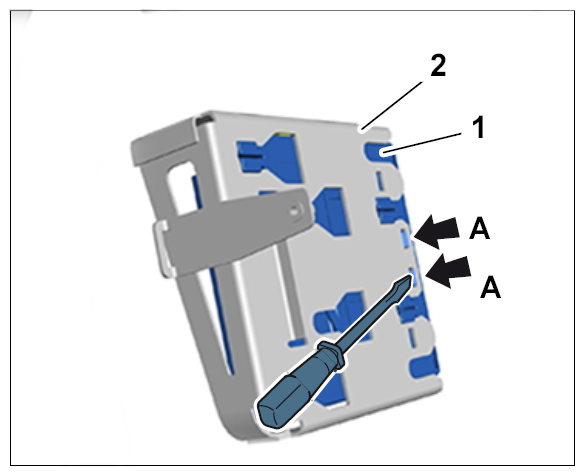

Unclip control unit for front-end electronics from the bracket.
1. 1.1. Release the securing lugs with a screwdriver -A- .
2. 1.2. Pull the control unit for front-end electronics together with the intermediate holder -1- out of the bracket -2- in the direction of travel.
3. 1.3. Swivel control unit for front-end electronics and intermediate support out sideways in a downward direction.

  Fig 2: Unclipping Front-End Electronics Control Unit From Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

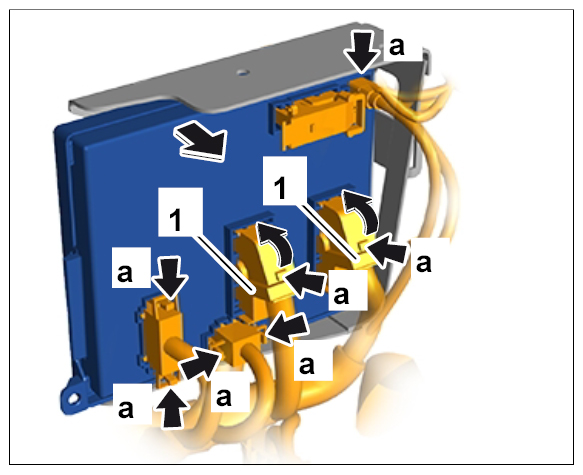

Disconnect electric plug connections.
1. 2.1. Release and pull off electric plug connection -a- .
2. 2.2. Release securing clip -1- (-a- ).
3. 2.3. Swivel securing clip down and pull off electric plug connection.

  Fig 3: Disconnecting Electric Plug Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

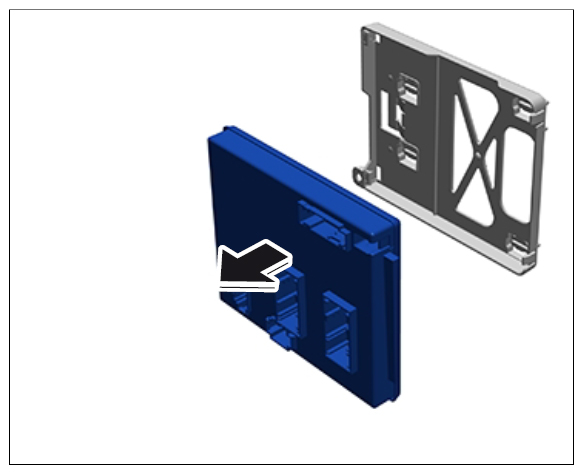

Unclip control unit for front-end electronics from the intermediate support.
1. 3.1. Release locking lugs on intermediate holder -2- (-a- ).
2. 3.2. Remove front-end electronics control unit from intermediate holder.

  Fig 4: Unclipping Front-End Electronics Control Unit From Intermediate Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
