Installing Control Unit For Front-End Electronics

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Clip control unit for front-end electronics into the intermediate support.
1. 1.1. Guide front-end electronics control unit -1- into intermediate holder -A- .
2. 1.2. Clip front-end electronics control unit into the locking lugs -2- on the intermediate holder -B- until they engage securely.

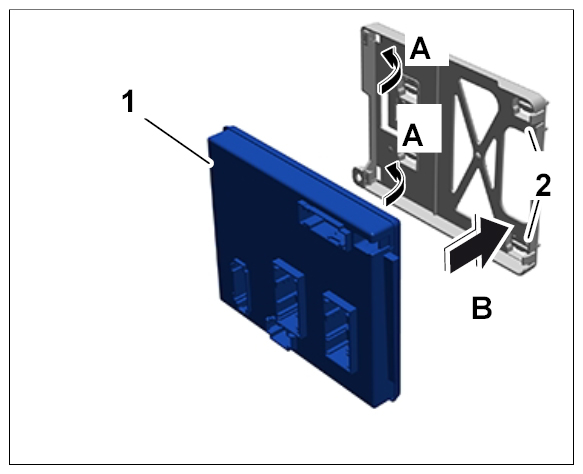

  Fig 1: Clipping Front-End Electronics Control Unit Into Intermediate Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connections -1- .
1. 2.1. Plug in electric plug connection with the securing clip.
2. 2.2. Bend up the securing clip until the locking mechanism engages securely.
3. 2.3. Plug in electric plug connection without the securing clip until the locking mechanism engages securely.

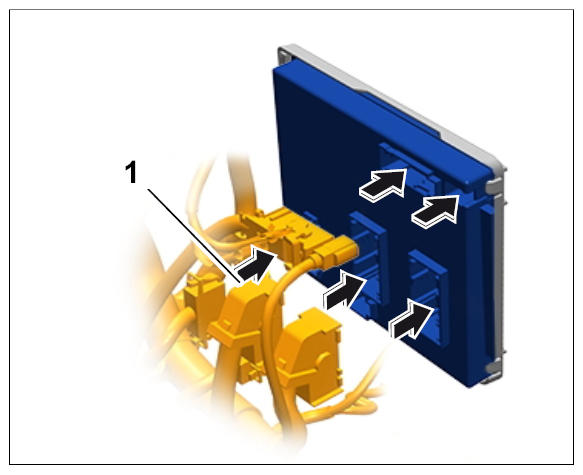

  Fig 2: Pluging In Electric Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip control unit for front-end electronics into the bracket.
1. 3.1. Swivel in front-end electronics control unit with intermediate holder -3- up towards the bracket -4- .
2. 3.2. Position guides -1- for the intermediate holder on the bracket -4- (-arrow- ).
3. 3.3. Pull front-end electronics control unit with intermediate holder in the opposite direction to the direction of travel until the locking lugs -2- lock with an audible click.

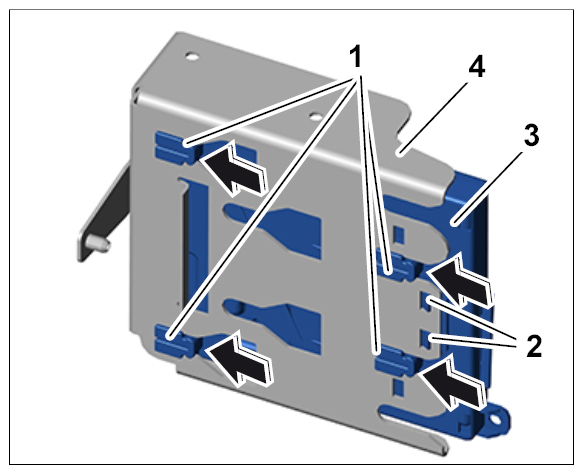

  Fig 3: Clipping Front-End Electronics Control Unit Into Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
