Removing Tail Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The work steps are described for the left rear door of the vehicle and must be performed in the same way on the other doors. Any different work steps are marked/highlighted.

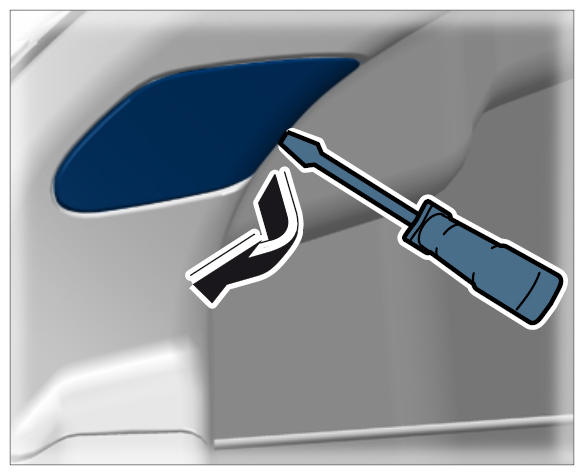

Carefully open the cover in the luggage compartment trim panel using a screwdriver.

Fig 1: Opening Luggage Compartment Trim Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

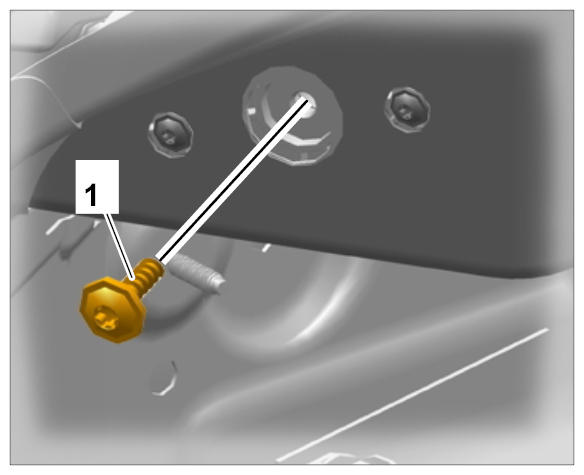

Unscrew and remove fastening screw -1- .

Fig 2: Removing Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

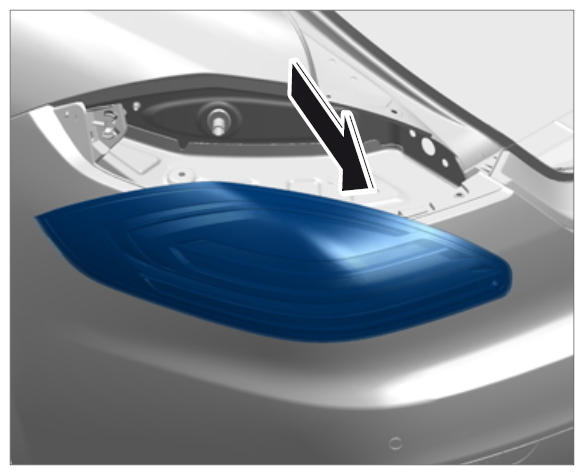

Remove the tail light from the bracket.

Fig 3: Removing Tail Light From Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

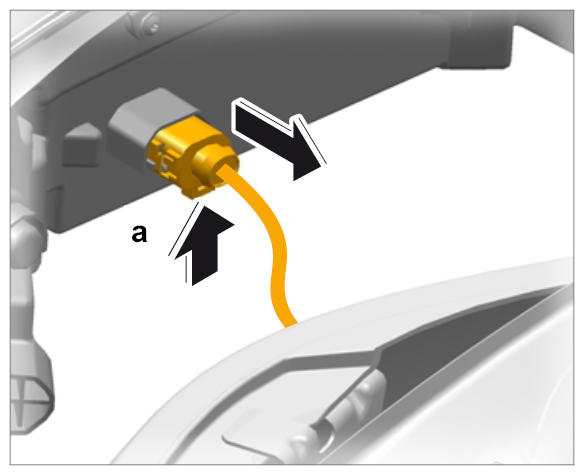

Release -a- and unplug connector (locking mechanism on back of connector).

Fig 4: Disconnecting Tail Light Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
