Installing Tail Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

The work steps are described for the left rear door of the vehicle and must be performed in the same way on the other doors. Any different work steps are marked/highlighted.

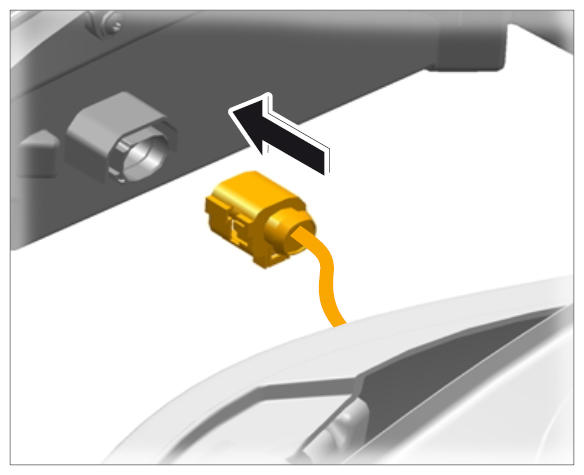

Plug in connector on the tail light until it engages securely.

Fig 1: Connecting Tail Light Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

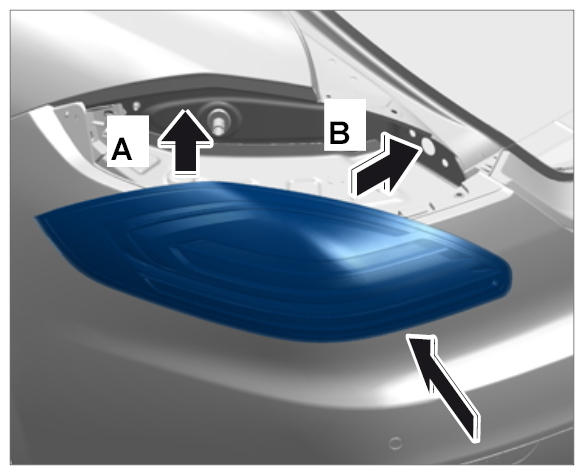

Fit the tail light into the bracket. Observe specified sequence.

Fig 2: Fitting Tail Light Into Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

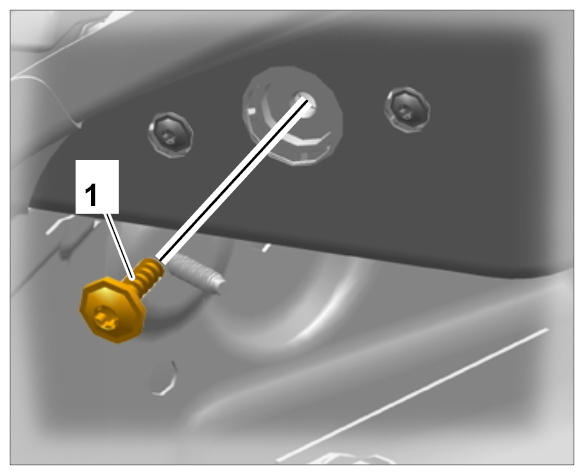

Screw in the fastening screw -1- . → Tightening torque: 5 Nm (3.5 ftlb.)

Fig 3: Screwing In Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

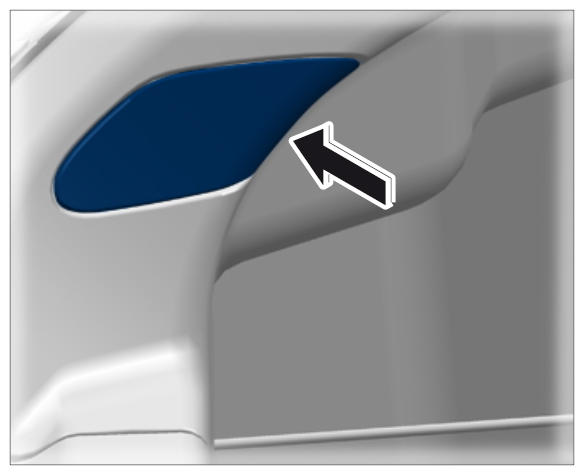

Fit cover into the luggage compartment trim panel. Make sure it is seated securely.

Fig 4: Fitting Luggage Compartment Trim Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
