Removing Number Plate Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver -2-  at the recess for the number plate light -1-  and press number plate light in direction of arrow.
  2. Remove number plate light -1-  .

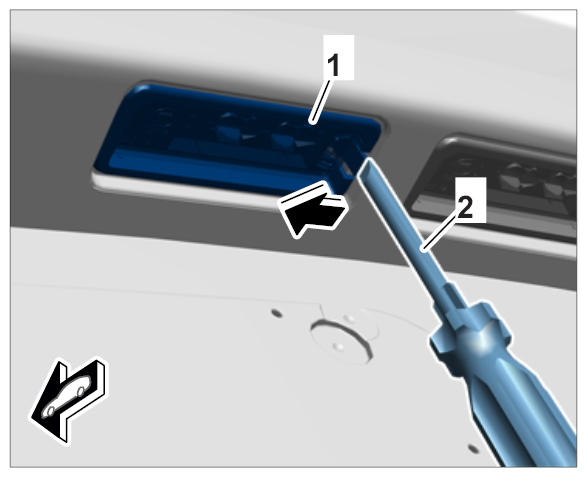

    Fig 1: Removing Number Plate Light
    G09814811Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release plug connection for number plate light -1-  (-A-  ) and pull it off -B-  .

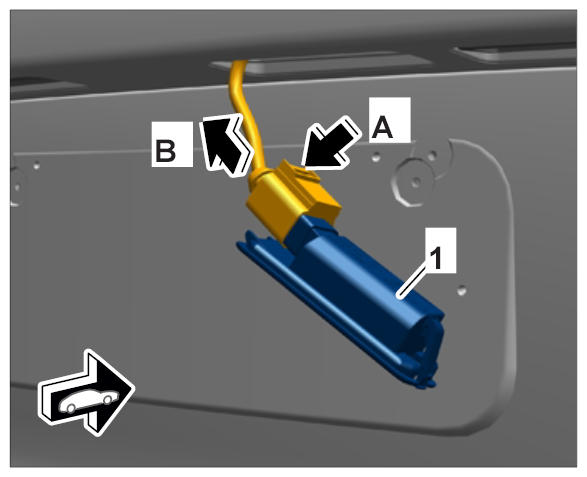

    Fig 2: Disconnecting Number Plate Light Plug Connection
    G09814812Courtesy of PORSCHE CARS NORTH AMERICA, INC.
