Installing Number Plate Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect plug connection for number plate light -1-  until it engages securely.

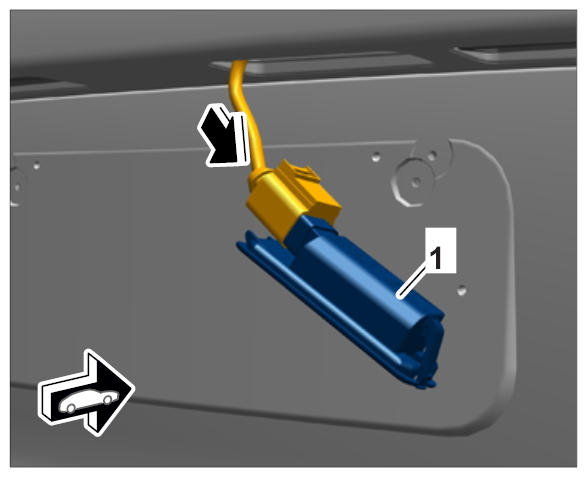

    Fig 1: Connecting Number Plate Light Plug Connection
    G09814813Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit number plate light at one side of the opening and clip it in.

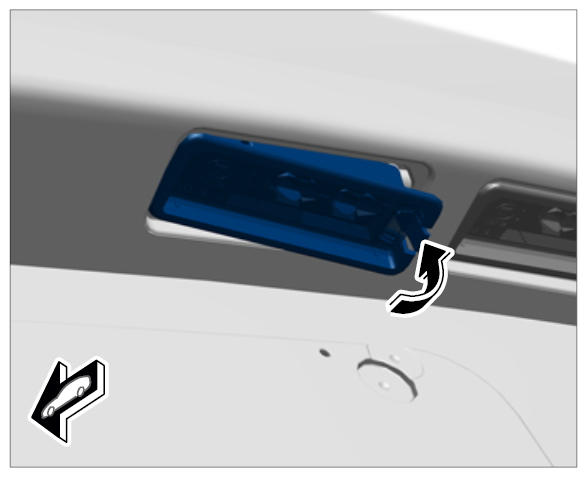

    Fig 2: Clipping In Number Plate Light
    G09814814Courtesy of PORSCHE CARS NORTH AMERICA, INC.
