Removing Dipped Beam Halogen Bulb

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of bulbs

Risk of damage to bulbs and the bulb housing

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

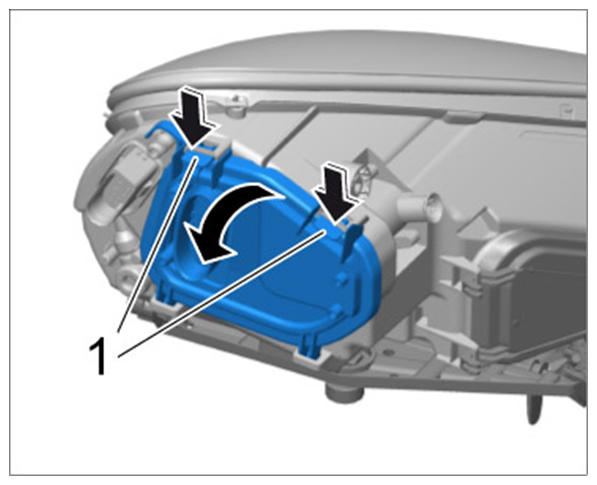

Release rear cover at the clips and open it.

Fig 1: Opening Rear Cover Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

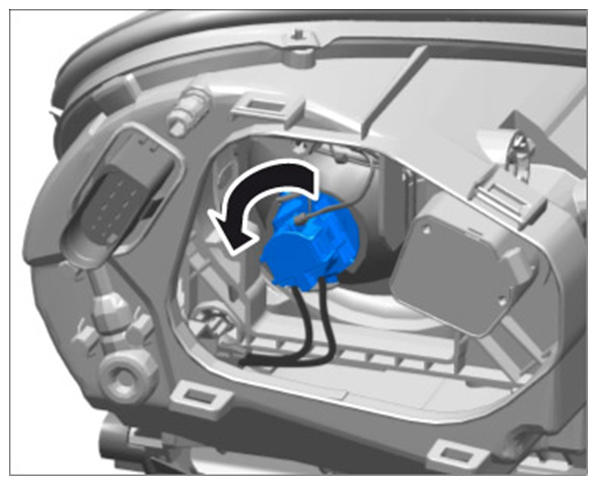

Remove the halogen bulb and socket from the bracket by turning once in direction of arrow.

Fig 2: Turning To Remove Halogen Bulb And Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

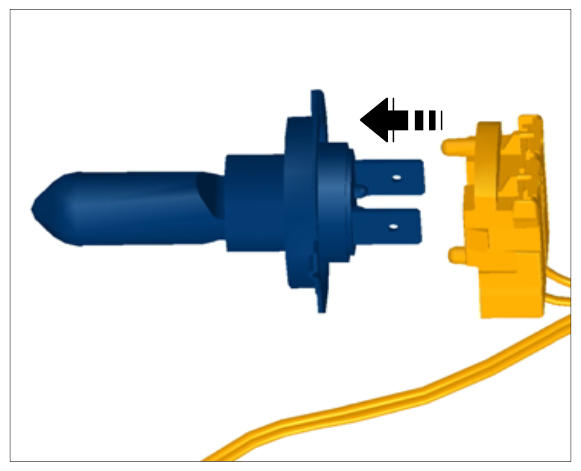

Unplug connector on halogen bulb.

Fig 3: Disconnecting Halogen Bulb Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
