Installing Dipped Beam Halogen Bulb

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of bulbs

Risk of damage to bulbs and the bulb housing

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

Plug in connector on halogen bulb. Only hold the bulb at the socket.

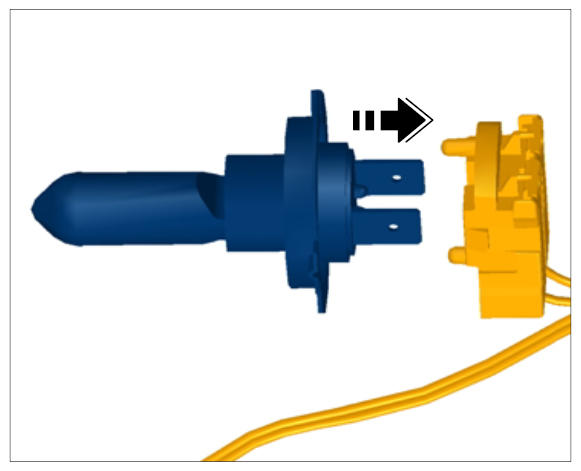

Fig 1: Plugging In Halogen Bulb Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert halogen bulb and socket and lock it by turning once in direction of arrow.

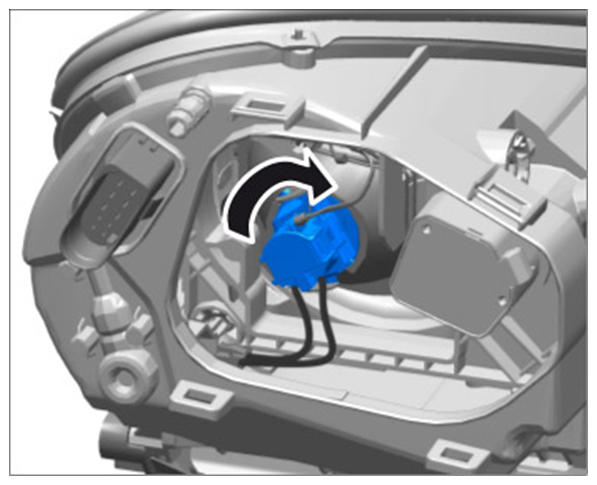

Fig 2: Turning To Lock Halogen Bulb And Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the rear cover until it engages securely.
