Removing Main Headlights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Place the socket wrench from the tool kit on the release axle.
1. Locking mechanism closed
2. Locking mechanism open

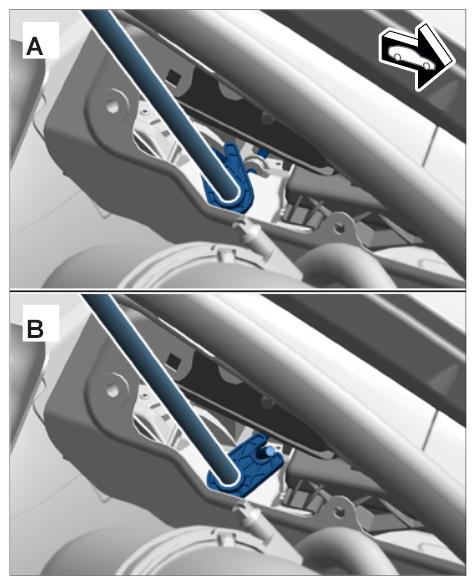

  Fig 1: Identifying Locking Mechanism For Main Headlight
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the locking mechanism by turning the socket wrench.
Pull the main headlight forward until the connector and vent hose are accessible on the back of the main headlight.

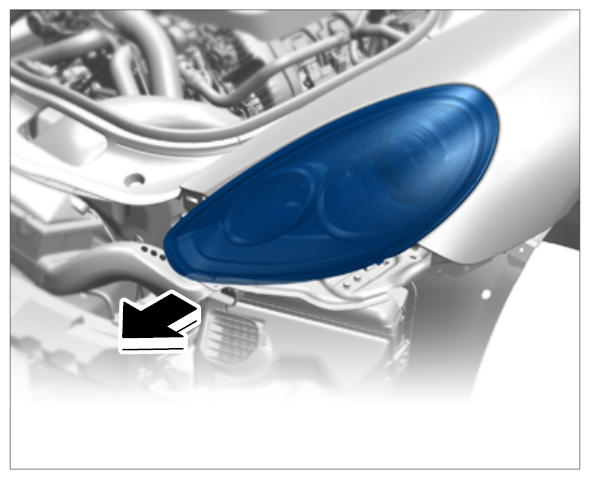

Fig 2: Removing Main Headlight From Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off vent hose -1- .

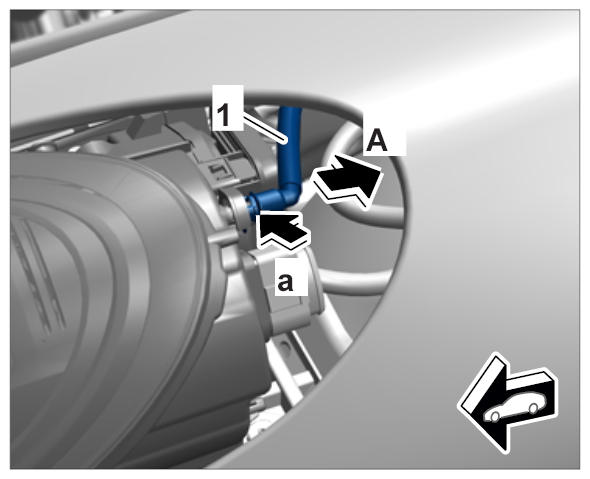

Fig 3: Pulling Off Vent Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and unplug connector -2- on the main headlight -a- .

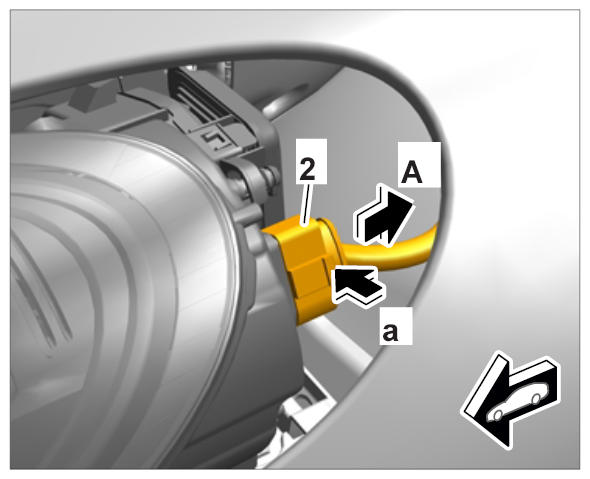

Fig 4: Unplugging Main Headlight Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove main headlight.
