Installing Headlights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

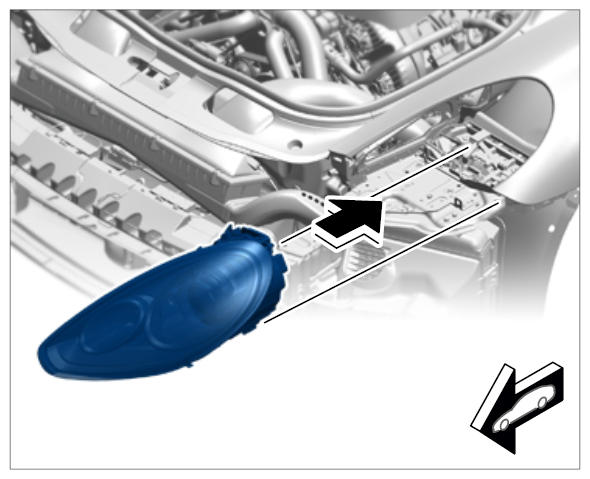

  1. Insert the headlight into the guide.
    Fig 1: Fitting Main Headlight Into Guide
    G09814777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

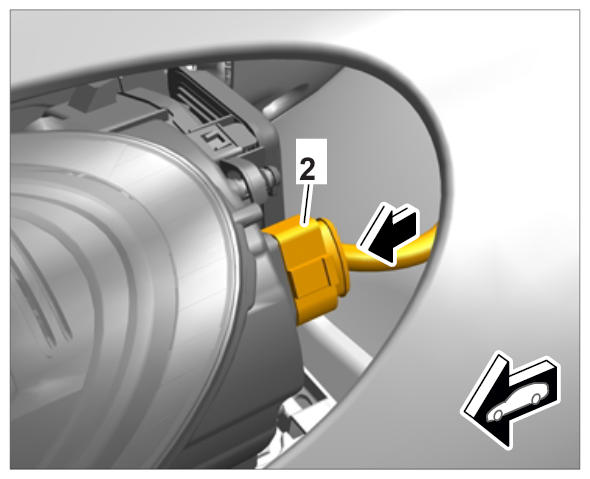

  2. Plug in connector -2-  on the headlight until it engages securely.
    Fig 2: Plugging In Main Headlight Connector
    G09814778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

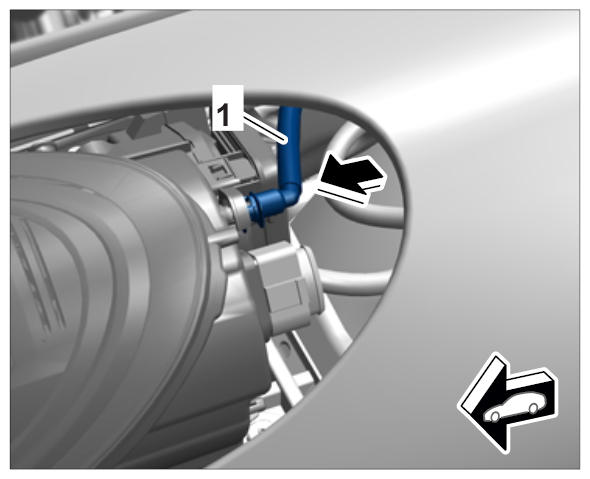

  3. Push on vent hose -1-  . Check that it is seated securely.
    Fig 3: Pushing On Vent Hose
    G09814779Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Always make sure that the headlight is locked at its end position. Locking the headlight at its first locking position is not sufficient and does not represent a correct functional state.

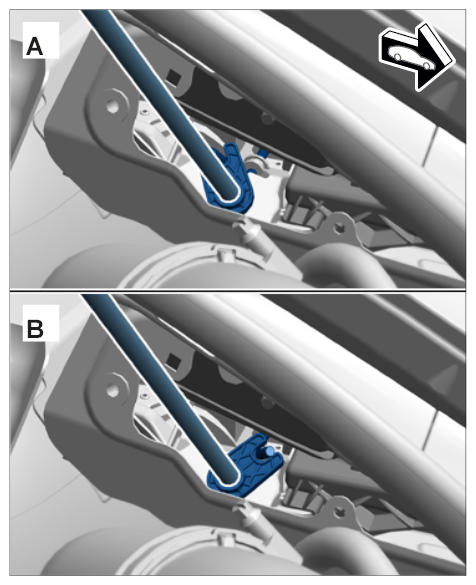

  4. Press off the first locking position on the spring support using an unlocking tool and push the headlight in as far as it will go. The locking lever is locked correctly if it is parallel to the rib on the spring support.
  5. Close the locking mechanism by turning the socket wrench until you reach the end position of the locking lever.
    1. Locking mechanism closed
    2. Locking mechanism open
    Fig 4: Identifying Locking Mechanism For Headlight
    G09814780Courtesy of PORSCHE CARS NORTH AMERICA, INC.
