Removing Side LED Module Fan

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -1-  and remove side cover -2-  .

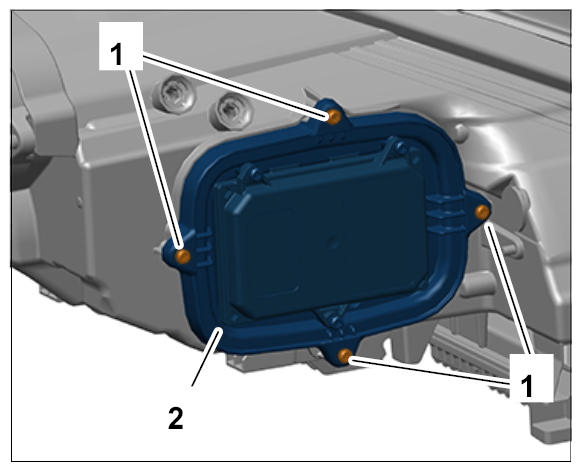

    Fig 1: Removing Side Cover Fastening Screws
    G09814769Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  and remove air guide -2-  .

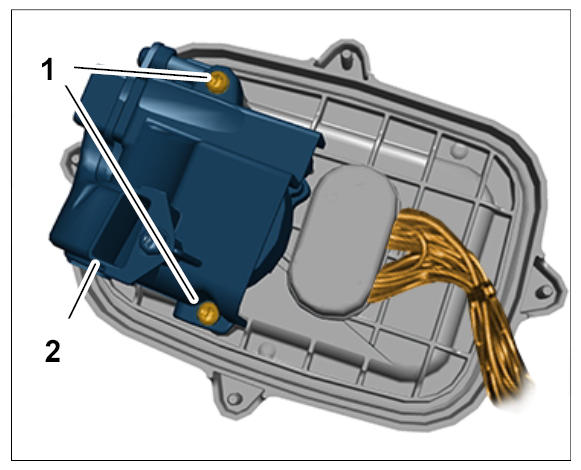

    Fig 2: Removing Air Guide Fastening Screws
    G09814770Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove side LED module fan -1-  from the retaining pins -2-  on the cover.
  4. Release and pull off electric plug connection -3-  (-a-  ).

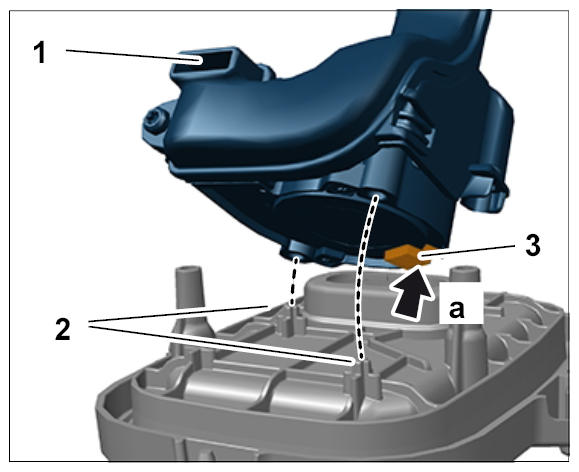

    Fig 3: Removing Side Led Module Fan From Retaining Pins
    G09814771Courtesy of PORSCHE CARS NORTH AMERICA, INC.
