Removing Fan For Rear LED Module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -1-  and remove cover -2-  .

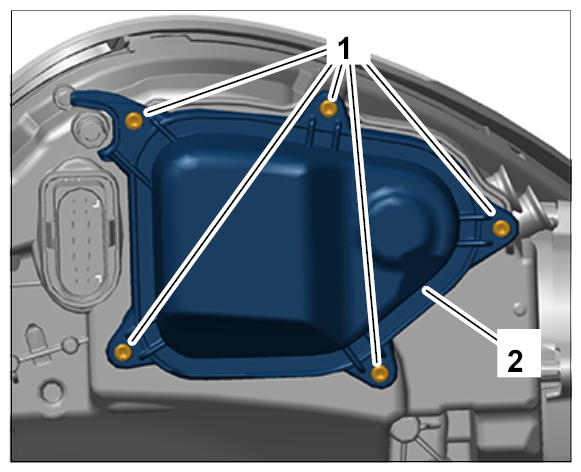

    Fig 1: Removing Rear Cover Fastening Screws
    G09814767Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release and disconnect electric plug connection -1-  (-a-  ).
  3. Carefully unclip holder -2-  for electric line from the fan for the rear LED module -3-  .
  4. Unscrew fastening screws -4-  and remove fan for rear LED module from the headlight housing.

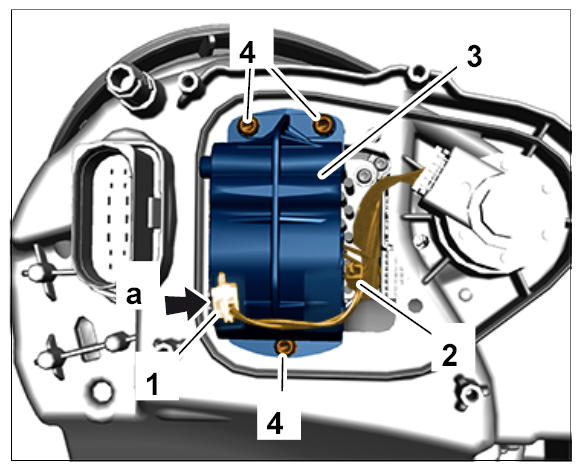

    Fig 2: Removing Rear LED Module Fan From Headlight Housing
    G09814768Courtesy of PORSCHE CARS NORTH AMERICA, INC.
