Removing Headlight Mounting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

All work steps are described for the right side of the vehicle. Some of these must be performed on the left side as a mirror image of the right side.

  1. Loosen the fastening nuts -1-  used to secure the headlight mounting from underneath.
  2. Loosen the knurled nuts -2-  on the adjusting elements.
  3. Pull the mounting forward out of the body.

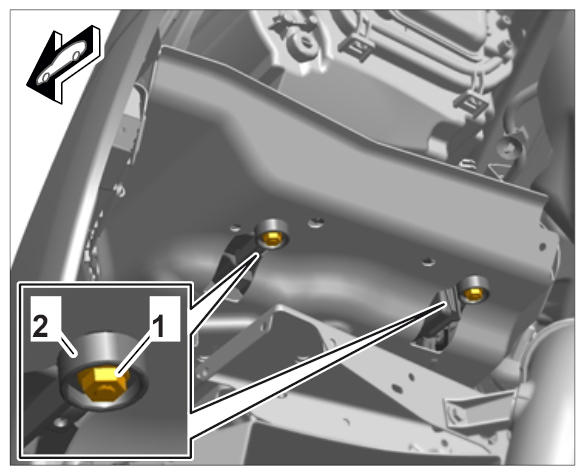

    4. Fig 1: Loosening Headlight Securing Fastening Nuts
    G09814761Courtesy of PORSCHE CARS NORTH AMERICA, INC.
