Installing Headlight Mounting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

All work steps are described for the right side of the vehicle. Some of these must be performed on the left side as a mirror image of the right side.

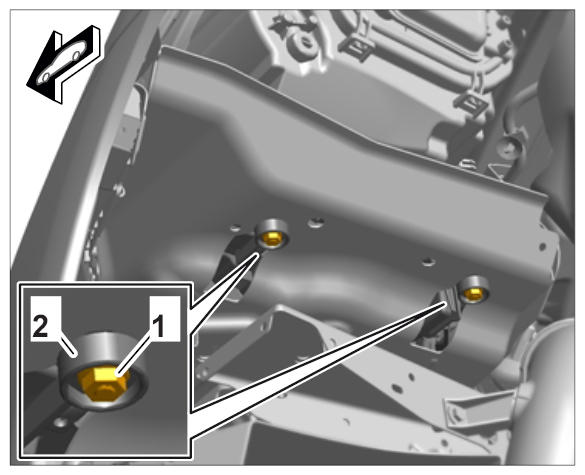

Push the mounting into the body and secure with the knurled nuts -2- .
Install main headlight. → Installing Main Headlights

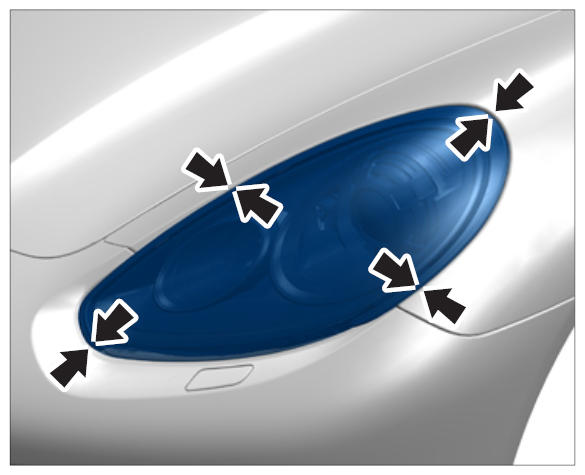

Check that the gap between the main headlight and the edge of the body is uniform and adjust it using the knurled nuts if necessary.

Fig 1: Identifying Edge Of Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the headlight mounting with the three fastening nuts -1- . → Tightening torque: 8 Nm (6 ftlb.)

Fig 2: Tightening Headlight Securing Fastening Nuts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
