Installing Main Light Switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect plug connection.

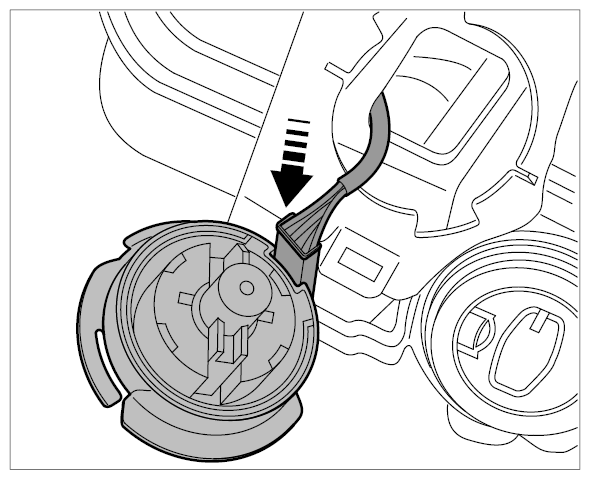

    Fig 1: Connecting Main Light Switch Plug Connection
    G09814751Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check that the plug connection is seated securely.
  3. Insert main light switch into the cut-out and lock it by turning it.

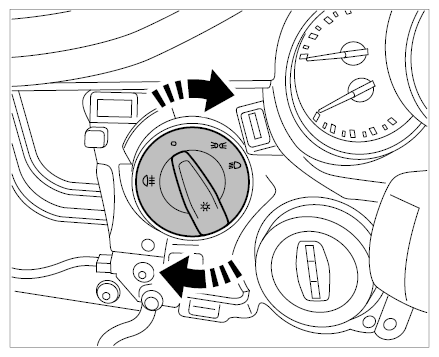

    Fig 2: Installing Main Light Switch
    G09814752Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Perform a function test.
