Installing Trim Panel Under Dashboard

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is performed in reverse order to removal.
  2. Tighten fastening screws to the specified tightening torque Tightening torque 3.2 Nm until secure.
  3. Position trim panel -arrow A-  and tighten fastening screws on the transverse strut -arrow B-  to the specified tightening torque Tightening torque 8.0 Nm (6 ftlb.)  until secure.

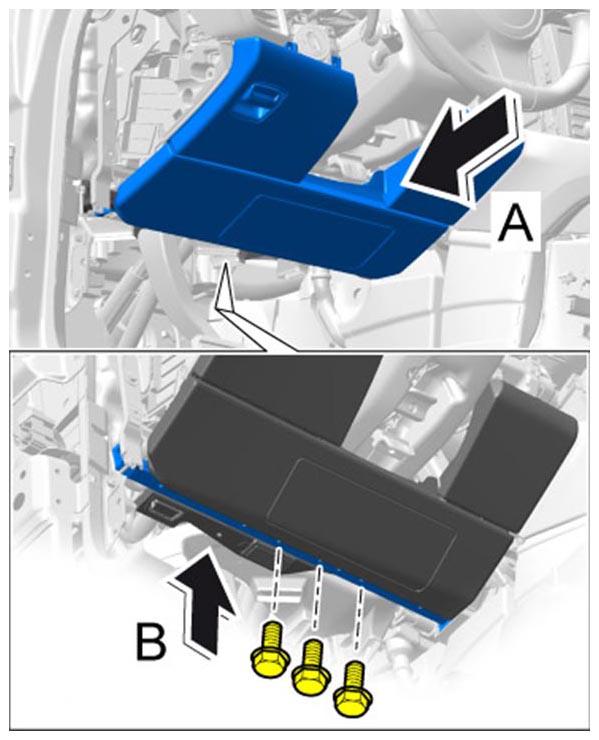

    Fig 1: Fitting Trim Panel On Transverse Strut
    G09812228Courtesy of PORSCHE CARS NORTH AMERICA, INC.
