Installing Spray Nozzle For Headlight Cleaning System

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the lifting cylinder was dropped or the spring-loaded, extended headlight washer system was released abruptly while removing and installing the spray nozzle, the component must be replaced with a new one.

Insert lifting cylinder -1- in an upward direction and clip it into the retaining frame.

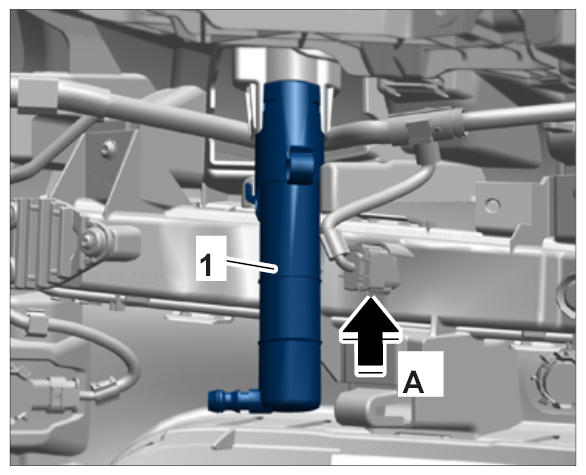

Fig 1: Installing Lifting Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide hose onto the spray nozzle and clip it in.

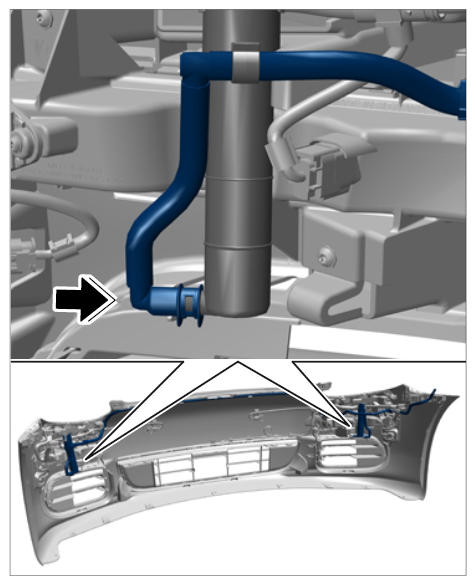

Fig 2: Sliding Spray Nozzle Hose And Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip hose into the lifting cylinder bracket.
Clip cap for front apron onto the nozzle head (individual part).
Push spray nozzle and cap -1- into the lifting cylinder from above -A- until the cap is flush with the front apron.

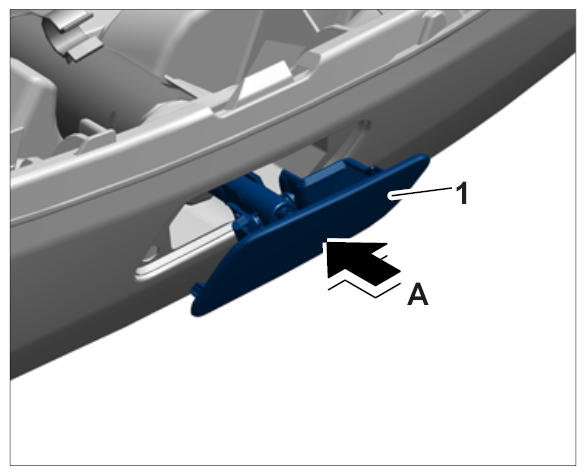

Fig 3: Installing Spray Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the cap is fitted correctly in the hole on the front apron. If the cap is not fitted securely enough, the nozzle head can be pressed in slightly. One detent = 1.25 mm.
