Removing Exhaust System

CAUTION: Hot components
  • Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

CAUTION: Heavy components
  • Risk of squashing

→ Wear personal protective gear.

→ Get someone to help if necessary.

NOTE:
  • Before the rear silencer is released, the exhaust system must be supported with a transmission jack or held by another person.
  1. Unscrew screws on rear silencer holder.
    G11982642

    Screws for rear silencer holder

  2. Loosen clamp for catalytic converter at the rear silencer.
    1. 2.1. Loosen nuts -2-  and move clamp -1-  .

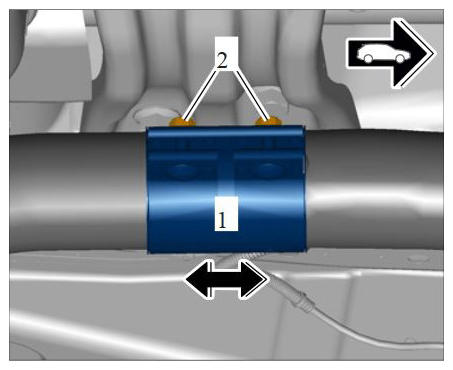

    G11982643

    Clamp on rear silencer

  3. Unscrew nuts -1-  on holder -2-  for rear silencer.

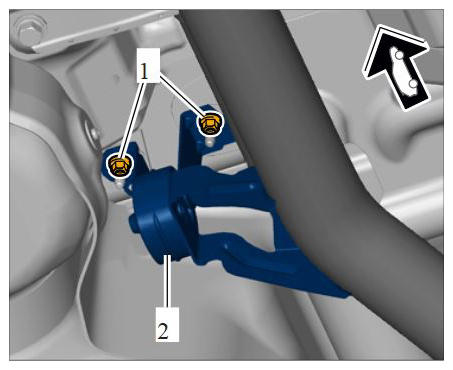

    G11982644

    Nuts for rear silencer holder

  4. Remove exhaust system.
